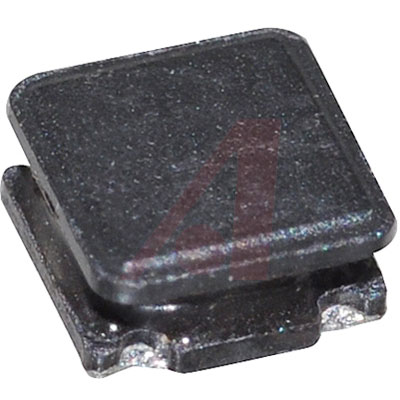

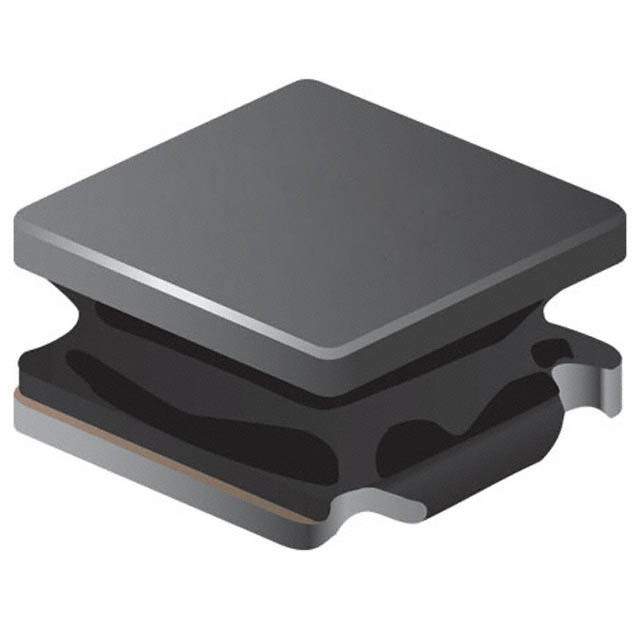

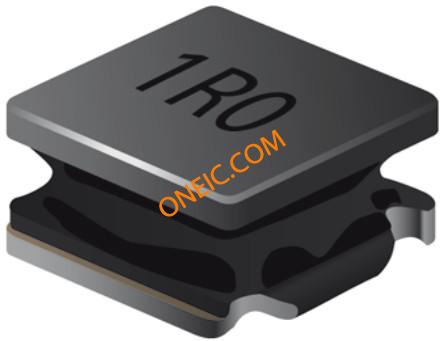

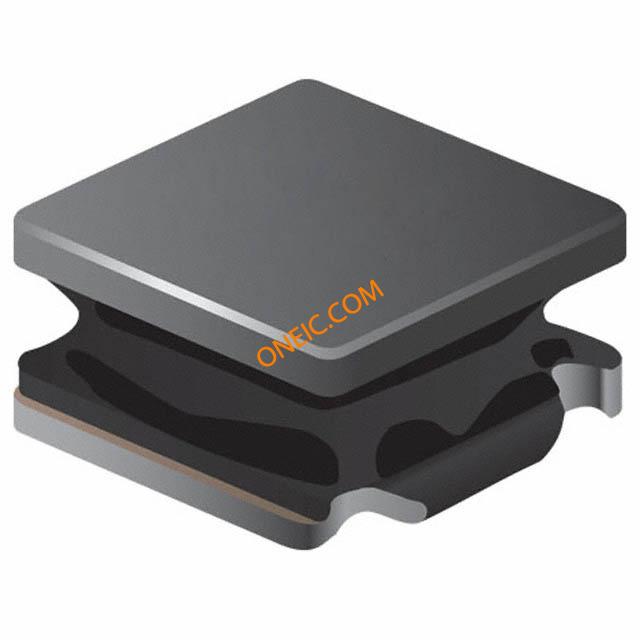

SRN3015 Series Semi Magnetically Shielded Wire Wound ChokesBourns® SRN3015 Series Miniature SMD Semi-shielded Power Inductors. Component height of 1.5mm Inductance range from 1 to 100μH Rated current of up to 2.35A Applications include: DC/DC converters; Notebook computers; Digital video cameras; HDDs; Cell phones; Televisions, LCD displays ### Bourns 非标准表面安装电感器(扼流圈)
18 µH 半屏蔽 绕线 器 650 mA 546 毫欧最大 非标准
得捷:
FIXED IND 18UH 650MA 546MOHM SMD
欧时:
### SRN3015 Series Semi Magnetically Shielded Wire Wound ChokesBourns® SRN3015 Series Miniature SMD Semi-shielded Power Inductors. Component height of 1.5mm Inductance range from 1 to 100μH Rated current of up to 2.35A Applications include: DC/DC converters; Notebook computers; Digital video cameras; HDDs; Cell phones; Televisions, LCD displays ### Bourns 非标准表面安装电感器(扼流圈)
e络盟:
BOURNS SRN3015-180M. INDUCTOR, SHIELDED, 18UH, 620MA, SMD
艾睿:
Inductor Power Semi-Shielded Wirewound 18uH 20% 1MHz 25Q-Factor Ferrite 0.65A 0.546Ohm DCR 1212 T/R
Allied Electronics:
Inductor; Power; Semi-Shielded; Ind 18 uH; Tol 20%; Cur-Rtg 0.65 A; SMT
安富利:
Ind Power Semi-Shielded Wirewound 18uH 20% 1MHz Ferrite 650mA 1212 T/R
Chip1Stop:
Inductor Power Semi-Shielded Wirewound 18uH 20% 1MHz 17Q-Factor Ferrite 650mA 546mOhm DCR 1212 T/R
Verical:
Inductor Power Semi-Shielded Wirewound 18uH 20% 1MHz 25Q-Factor Ferrite 0.65A 0.546Ohm DCR 1212 T/R
Newark:
# BOURNS SRN3015-180M Surface Mount Power Inductor, SRN3015 Series, 18 µH, 650 mA, 620 mA, Shielded, 0.546 ohm
MASTER:
Inductor Power Semi-Shielded Wirewound 18uH 20% 1MHz 17Q-Factor Ferrite 650mA 546mOhm DCR 1212 T/R
Online Components:
Inductor Power Semi-Shielded Wirewound 18uH 20% 1MHz 17Q-Factor Ferrite 650mA 546mOhm DCR 1212 T/R
Electro Sonic:
Inductor Power Semi-Shielded Wirewound 18uH 20% 1MHz 17Q-Factor Ferrite 650mA 546mOhm DCR 1212 T/R
额定电流 650 mA
容差 ±20 %
电感 18 µH
自谐频率 30 MHz
Q值 17
电感公差 ±20 %
测试频率 1 MHz
电阻DC) ≤546 mΩ
工作温度Max 125 ℃
工作温度Min -40 ℃
电阻DC Max 0.546 Ω
安装方式 Surface Mount
引脚数 2
封装 1212
长度 3 mm
宽度 3 mm
高度 1.5 mm
封装 1212
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SRN3015-180M Bourns J.W. Miller 伯恩斯 | 当前型号 | 当前型号 |
MCSD105-180MU Multicomp | 功能相似 | SRN3015-180M和MCSD105-180MU的区别 |
