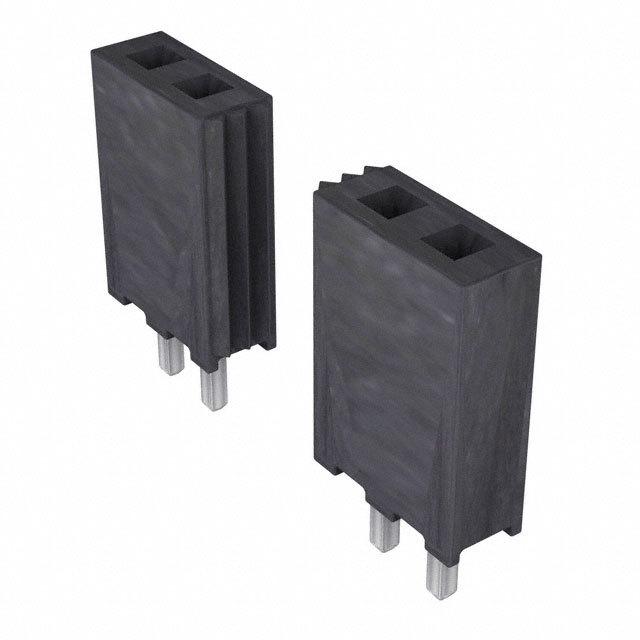

Conn Rcpt 2mm 32POS Sgl Vert Pcb
32 Position Receptacle Connector 0.079" 2.00mm Through Hole Gold
得捷:
CONN RCPT 32POS 0.079 GOLD PCB
艾睿:
Use this socket strip SQT-132-01-L-S connector from Samtec when board-to-board interconnects is required. This SKT connector&s;s 32 contacts that are made out of phosphor bronze and plated with gold over nickel. This is a 1-row connector. Its pitch is 2 mm. It has a straight body orientation. It has a socket type gender. It has a maximum voltage rating of 450 VAC. This device has a maximum current rating of 5.1 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. It uses the solder termination method. This connector has an operating temperature of -55 to 125 °C. This product is 64.3 mm long, 6.35 mm tall and 2 mm deep. SQT-132-01-L-S is housed in black liquid crystal polymer.
触点数 32
极性 Female
触点电镀 Gold
额定电压AC 450 V
额定电流 5.1A/触头
排数 1
针脚数 32
拔插次数 100
额定电流Max 5.1A/触头
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压Max 281 VAC
额定电压 450 VAC
接触电阻Max 10 mΩ
安装方式 Through Hole
引脚间距 2.00 mm
长度 64.3 mm
宽度 2.00 mm
高度 6.35 mm
引脚间距 2.00 mm
外壳颜色 Black
颜色 Black
触点材质 Phosphor Bronze
工作温度 -55℃ ~ 125℃
外壳材质 Plastic
产品生命周期 Active
包装方式 Tube
制造应用 -
RoHS标准 RoHS Compliant
含铅标准 Lead Free
