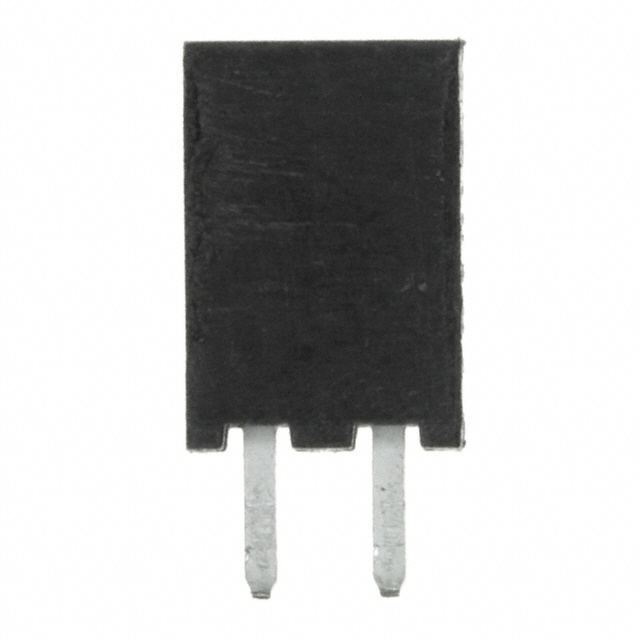

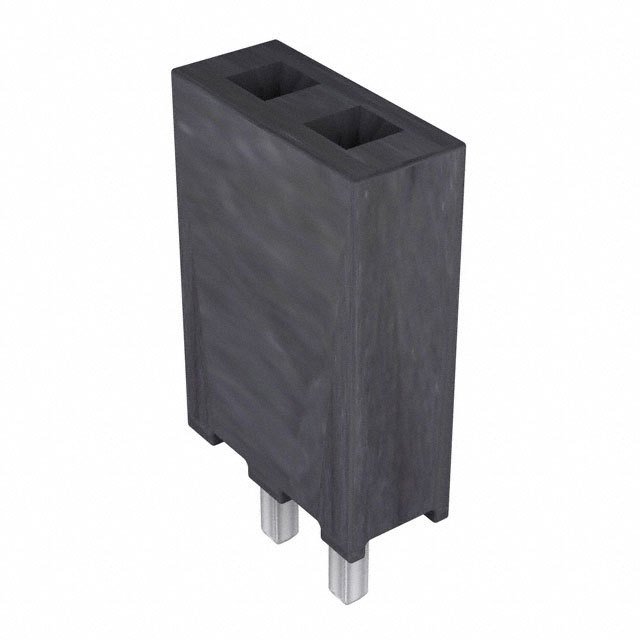

SQT-102-01-F-S

连接器, 母, 2 触芯, 1 排

2 Position Receptacle Connector Through Hole

得捷:
CONN RCPT 2MM 2POS SGL VERT PCB

欧时:
2.00 mm FleXYZ Cost-effective Tiger Buy

e络盟:
连接器, 母, 2 触芯, 1 排

艾睿:
Use this socket strip SQT-102-01-F-S connector from Samtec when board-to-board interconnects is required. This SKT connector&s;s 2 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a socket type gender. It has a maximum voltage rating of 450 VAC. It has a straight body orientation. This is a 1-row connector. Its pitch is 2 mm. This device has a maximum current rating of 5.1 A/contact. This product is 4.3 mm long, 6.35 mm tall and 2 mm deep. It uses the solder termination method. This connector has an operating temperature of -55 to 125 °C. SQT-102-01-F-S is housed in black liquid crystal polymer.

Verical:
Conn Socket Strip SKT 2 POS 2mm Solder ST Thru-Hole Bulk

Newark:
# SAMTEC  SQT-102-01-F-S  2MM SOCKET STRIPS
