SP22G-1K概述

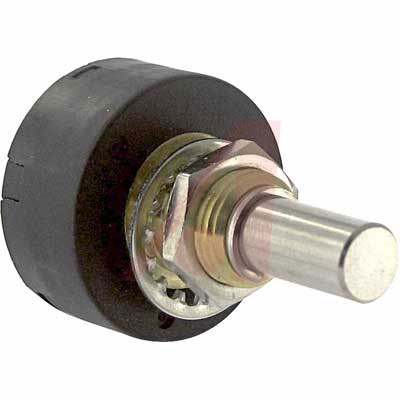

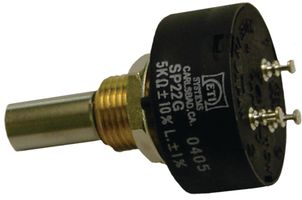

ETI SYSTEMS SP22G-1K Rotary Potentiometer, Conductive Plastic, 1KΩ, 1W, ± 10%, SP22G Series, 1 Turns, Linear
+⁄- 10% Tolerance, 1 W, SP22G Conductive Plastic Precision Single Turn Potentiometers
Stainless steel shaft and gold plated terminals.- .
- * Electrical Angle:** 340°. ** Mechanical Angle:** 360° continuous. ** Life Shaft Revolutions:** 10,000,000. ** Resistance Tolerance:** 10%. ** Linearity:** 1%. ** Operating Temperature Range** : –55°C to +105°C. ** Power Rating:** 1 watt. ** Insulation Resistance:** 1000 Megohms @ 500 VDC. ** Dielectric Strength:** 500 VAC. ** Output Smoothness:** Below 0.1% ** Starting Torque:** 0.7 oz. in. maximum. ** Options: ** Tighter tolerances, other resistance values, shaft modifications, sealed construction, center tap.
** SP22G: ** Brass bushing, 1⁄4" shaft diameter ** SP22GS:** Servo mount ball bearings, 1⁄8" shaft diameter.
* Datasheet Available On-Line
在线购买SP22G-1K
型号： SP22G-1K
制造商：
ETI
描述：ETI SYSTEMS SP22G-1K Rotary Potentiometer, Conductive Plastic, 1KΩ, 1W, ± 10%, SP22G Series, 1 Turns, Linear
