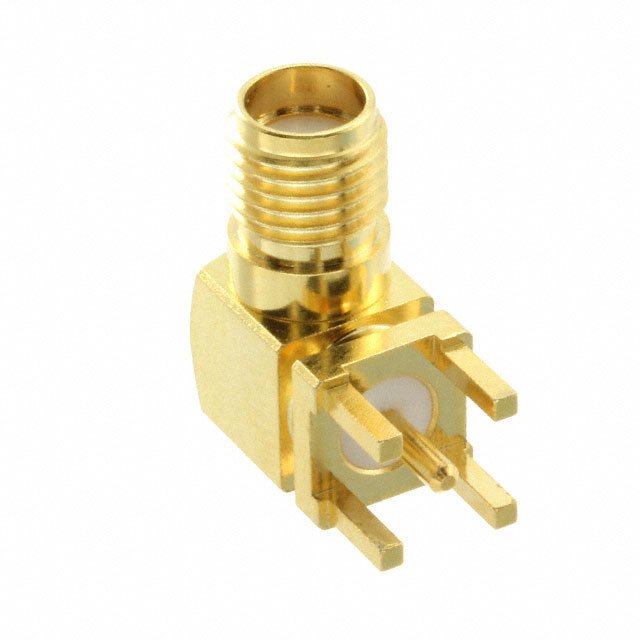

SMA-J-P-H-RA-TH1

射频/同轴连接器, SMA同轴, 直角插座, 通孔安装 直角, 50 ohm, 铍铜

SMA 插孔，母形插口 50 欧姆 通孔，直角 焊接

欧时:
50 Ohm R/A PCB mount SMA jack

得捷:
CONN SMA JACK R/A 50 OHM PCB

e络盟:
射频/同轴连接器, SMA同轴, 直角插座, 通孔安装 直角, 50 ohm, 铍铜

艾睿:
Use the sma SMA-J-P-H-RA-TH1 RF connector from Samtec in your radio-frequency design. This connector&s;s body is plated in gold over nickel. It has a right angle body orientation. It has a female type gender. It has an operating frequency of 0 to 20G Hz. This component will be shipped in tray format. It uses the solder termination method. This rf connector has an operating temperature of -65 to 125 °C. This product is 15.1 mm long, 9.86 mm tall and 7 mm deep.

安富利:
Conn SMA F 50Ohm Solder RA Thru-Hole Gold Tray

Verical:
Conn SMA 0Hz to 20GHz 50Ohm Solder RA Thru-Hole F Gold Tray

Newark:
Sub-Mini RF

Online Components:
Conn SMA 0Hz to 20GHz 50Ohm Solder RA Thru-Hole F Gold Tray
