SLW-113-01-G-S

Conn Socket Strip SKT 13POS 2.54mm Solder ST Thru-Hole

13 位置 插座 通孔

得捷:
CONN RCPT 13POS 0.1 GOLD PCB

艾睿:

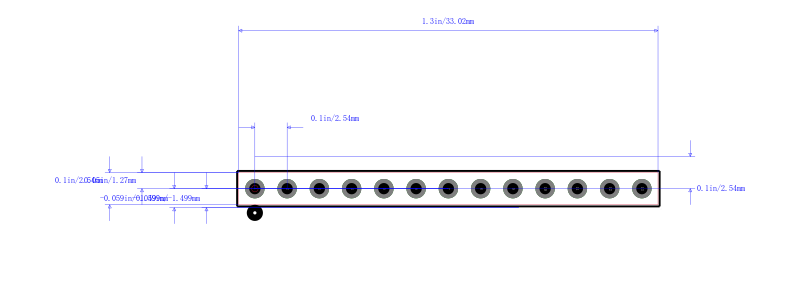

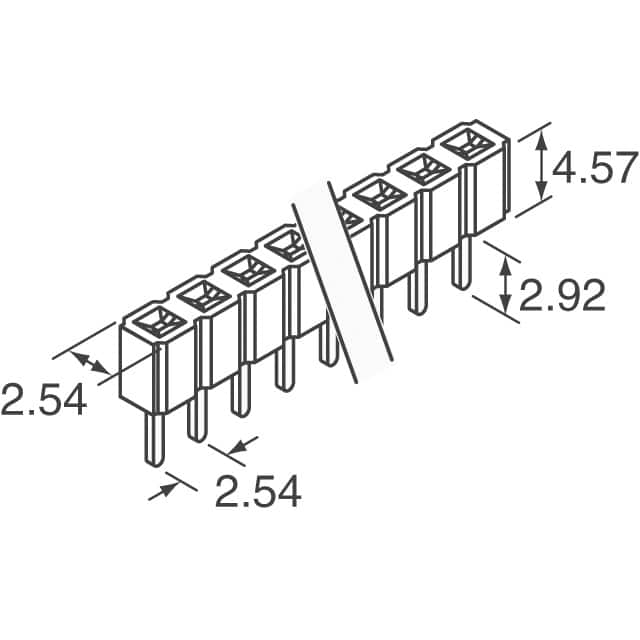

As an added safety precaution, the socket strip SLW-113-01-G-S header connector from Samtec will prevent and protect components on your circuit board from accidentally touching each other. This SKT connector&s;s 13 contacts that are made out of phosphor bronze and plated with gold over nickel. This is a 1-row connector. It has a maximum voltage rating of 50 VAC. Its pitch is 2.54 mm. It has a socket type gender. It has a straight body orientation. This device has a maximum current rating of 5.2 A/contact. This product comes packaged in bulk, so the parts will be stored loosely. SLW-113-01-G-S is housed in black polyester. It uses the solder termination method. This product is 33.02 mm long, 4.57 mm tall and 2.54 mm deep. This connector has an operating temperature of -55 to 125 °C.

安富利:
Conn Socket Strip SKT 13 POS 2.54mm Solder ST Thru-Hole

Newark:
# SAMTEC  SLW-113-01-G-S  .050 MICRO STRIPS
