SFMC-105-02-S-D-K-TR

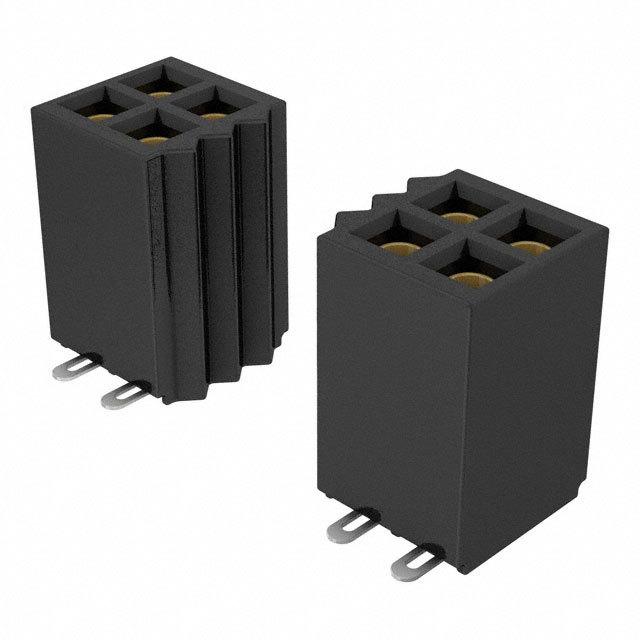

SAMTEC SFMC-105-02-S-D-K-TR Board-To-Board Connector, 1.27mm, 10Contacts, Receptacle, SFMC Series, Surface Mount, 2Rows

The SFMC series from are Tiger Eye high reliability flexible pin count socket strips. These socket strips mates with Samtec TFM, FMTP and FFMD series of connectors.

.

Available in dual row with vertical orientation

.

Pitch spacing is 1.27mm 2 to 50 contacts per row with surface mount lead style -02

.

30µ" gold plated contacts

.

Black liquid crystal polymer insulator material

.

Complies with UL E111594 and CSA 090871_0_000 standards

.

Contact material is beryllium copper BeCu

.

Contact resistance is 15mohm

.

High operating temperature range of -55°C to 125°C
