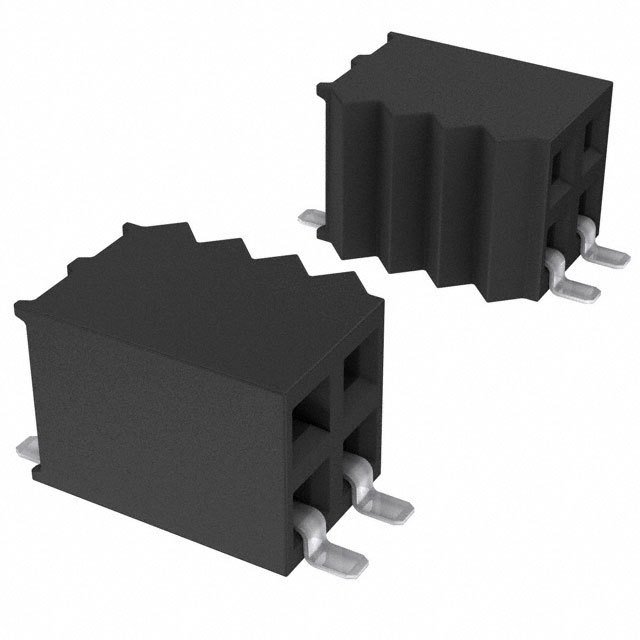

SSM-115-L-DH

Conn Socket Strip SKT 30POS 2.54mm Solder RA SMD Tube

30 位置 插座 0.100"（2.54mm） 表面贴装，直角 镀金

得捷:
CONN RCPT .100" 30POS DUAL HORZ

立创商城:
2.54mm

艾睿:

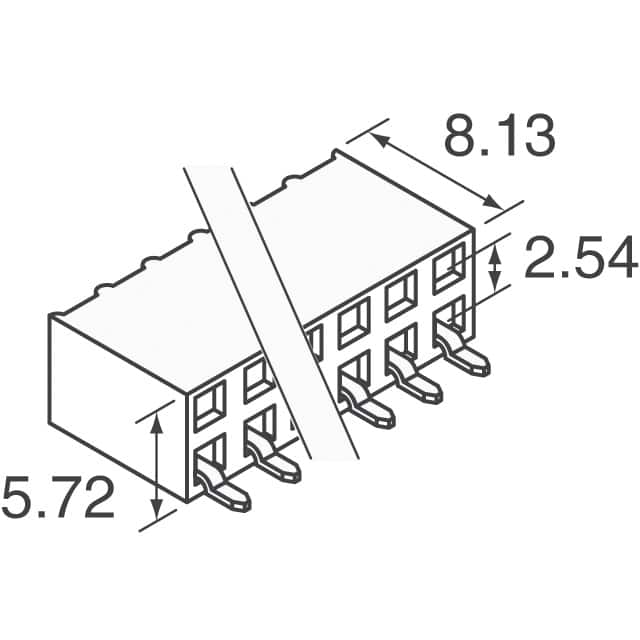

Reduce safety concerns with this socket strip SSM-115-L-DH header connector from Samtec which will reduce the possibility of accidentally shorting pins when a printed circuit board is being used. This SKT connector&s;s 30 contacts that are made out of phosphor bronze and plated with gold over nickel. Its pitch is 2.54 mm. It has a maximum voltage rating of 510 VDC|360VAC. It has a right angle body orientation. This is a 2-row connector. It has a socket type gender. This device has a maximum current rating of 5.2 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. SSM-115-L-DH is housed in black liquid crystal polymer. It uses the solder termination method. This product is 38.1 mm long, 5.72 mm tall and 11.18 mm deep. This connector has an operating temperature of -55 to 125 °C.

Newark:
# SAMTEC  SSM-115-L-DH  Board-To-Board Connector, 2.54 mm, 30 Contacts, Receptacle, SSM Series, Surface Mount, 2 Rows
