SMH-104-02-T-S

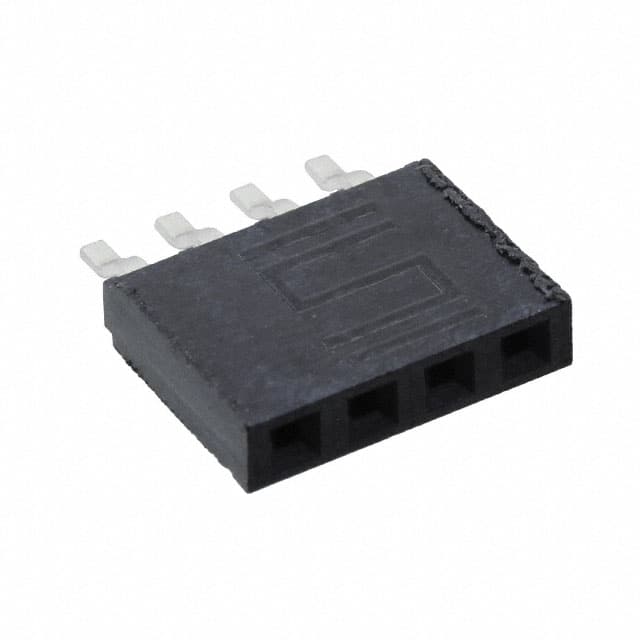

SMH-104-02-T-S图片1
SMH-104-02-T-S图片2
SMH-104-02-T-S图片3
SMH-104-02-T-S图片4
SMH-104-02-T-S概述

SAMTEC SMH-104-02-T-S Board-To-Board Connector, 2.54mm, 4Contacts, Receptacle, SMH Series, Through Hole, 1Rows

4 Position Receptacle Connector 0.100" 2.54mm Surface Mount, Right Angle Tin


欧时:
CONN RCPT 4POS 0.1 TIN SMD R,A


得捷:
CONN RCPT 4POS 0.1 TIN SMD R/A


艾睿:
Samtec&s;s socket strip SMH-104-02-T-S header connector is a great way to reduce safety concerns in projects where there is a possibility of accidentally shorting electronic components. This SKT connector&s;s 4 contacts that are made out of phosphor bronze and plated with tin over nickel. This is a 1-row connector. It has a socket type gender. It has a right angle body orientation. Its pitch is 2.54 mm. This device has a maximum current rating of 3 A/contact. It uses the solder termination method. This connector has an operating temperature of -55 to 105 °C. This product is 10.67 mm long, 2.41 mm tall and 11.94 mm deep. SMH-104-02-T-S is housed in black liquid crystal polymer.


安富利:
Conn Socket Strip SKT 4 POS 2.54mm Solder RA SMD


Newark:
# SAMTEC  SMH-104-02-T-S  Board-To-Board Connector, 2.54 mm, 4 Contacts, Receptacle, SMH Series, Through Hole, 1 Rows


SMH-104-02-T-S中文资料参数规格
技术参数

触点数 4

极性 Female

触点电镀 Tin

排数 1

针脚数 4

额定电流Max 3A/触头

工作温度Max 105 ℃

工作温度Min -55 ℃

接触电阻Max 10 mΩ

封装参数

安装方式 Surface Mount

外形尺寸

高度 2.41 mm

物理参数

外壳颜色 Black

触点材质 Phosphor Bronze

工作温度 -55℃ ~ 105℃

其他

产品生命周期 Active

包装方式 Bulk

制造应用 -

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/06/15

数据手册

在线购买SMH-104-02-T-S
型号: SMH-104-02-T-S
描述:SAMTEC SMH-104-02-T-S Board-To-Board Connector, 2.54mm, 4Contacts, Receptacle, SMH Series, Through Hole, 1Rows
替代型号SMH-104-02-T-S
型号/品牌 代替类型 替代型号对比

SMH-104-02-T-S

Samtec 申泰电子

当前型号

当前型号

BG300-04-A-L-A

Global Connector Technology

功能相似

SMH-104-02-T-S和BG300-04-A-L-A的区别
