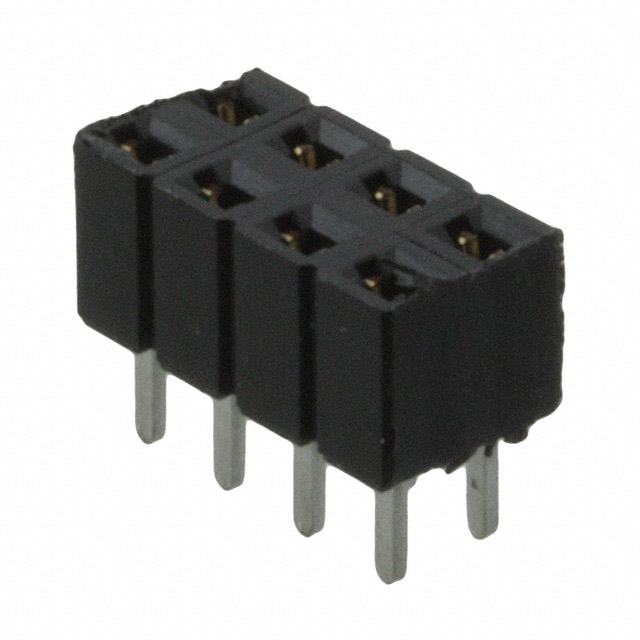

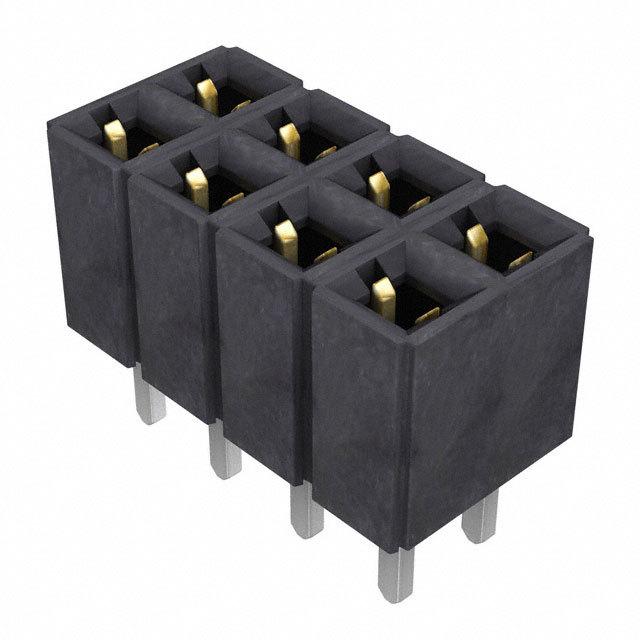

SLW-104-01-S-D

SAMTEC SLW-104-01-S-D Board-To-Board Connector, 2.54mm, 8Contacts, Receptacle, SLW Series, Through Hole, 2Rows

8 Position Receptacle Connector Through Hole

得捷:
CONN RCPT 8POS 0.1 GOLD PCB

艾睿:
As an added safety precaution, the socket strip SLW-104-01-S-D header connector from Samtec will prevent and protect components on your circuit board from accidentally touching each other. This SKT connector&s;s 8 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a maximum voltage rating of 50 VAC. It has a socket type gender. This is a 2-row connector. It has a straight body orientation. Its pitch is 2.54 mm. This device has a maximum current rating of 5.2 A/contact. This product comes packaged in bulk, so the parts will be stored loosely. This product is 10.16 mm long, 4.57 mm tall and 4.95 mm deep. This connector has an operating temperature of -55 to 125 °C. It uses the solder termination method. SLW-104-01-S-D is housed in black polyester.

安富利:
Conn Socket Strip SKT 8 POS 2.54mm Solder ST Thru-Hole

Verical:
Conn Socket Strip SKT 8 POS 2.54mm Solder ST Thru-Hole Bulk

Newark:
# SAMTEC  SLW-104-01-S-D  Board-To-Board Connector, 2.54 mm, 8 Contacts, Receptacle, SLW Series, Through Hole, 2 Rows
