SL-108-TT-12

SAMTEC SL-108-TT-12 Board-To-Board Connector, 2.54mm, 8Contacts, Receptacle, SL Series, Through Hole, 1Rows

8 位置 插座 0.100"（2.54mm） 通孔 锡

得捷:
CONN RCPT .100" 8POS TIN PCB

立创商城:
2.54mm

艾睿:

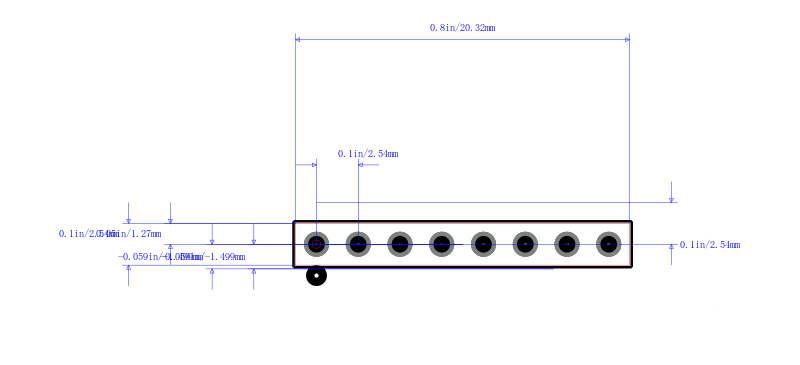

Samtec&s;s socket strip SL-108-TT-12 header connector is a great way to reduce safety concerns in projects where there is a possibility of accidentally shorting electronic components. This SKT connector&s;s 8 contacts that are made out of beryllium copper and plated with tin over nickel. Its pitch is 2.54 mm. It has a straight body orientation. It has a socket type gender. This is a 1-row connector. This device has a maximum current rating of 1 A. This product comes packaged in bulk, so the parts will be stored loosely. This connector has an operating temperature of -55 to 105 °C. This product is 20.32 mm long, 2.41 mm tall and 2.54 mm deep. It uses the solder termination method. SL-108-TT-12 is housed in black polyester.

Newark:
# SAMTEC  SL-108-TT-12  Board-To-Board Connector, 2.54 mm, 8 Contacts, Receptacle, SL Series, Through Hole, 1 Rows
