S9S12P32J0VFT

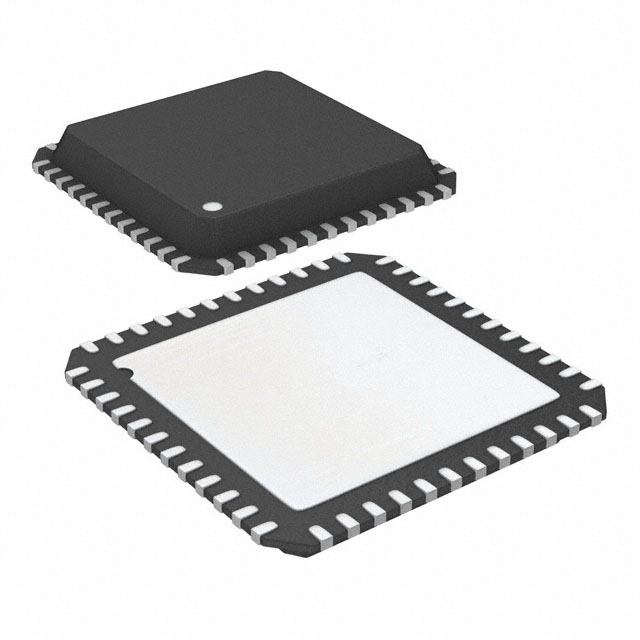

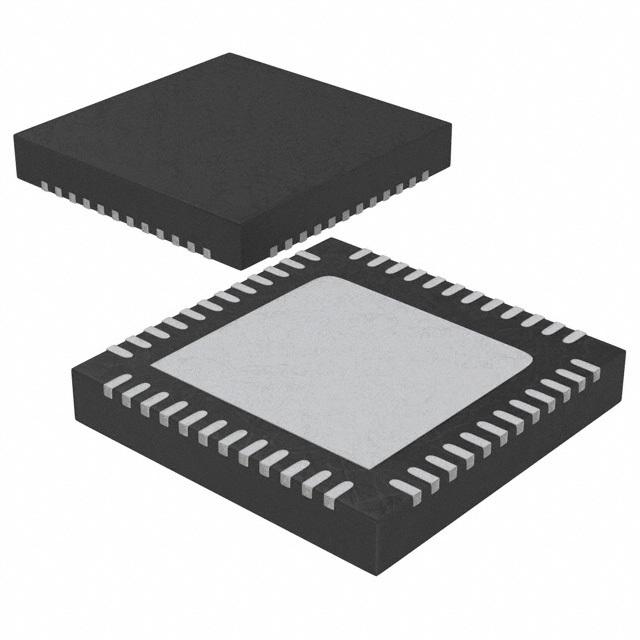

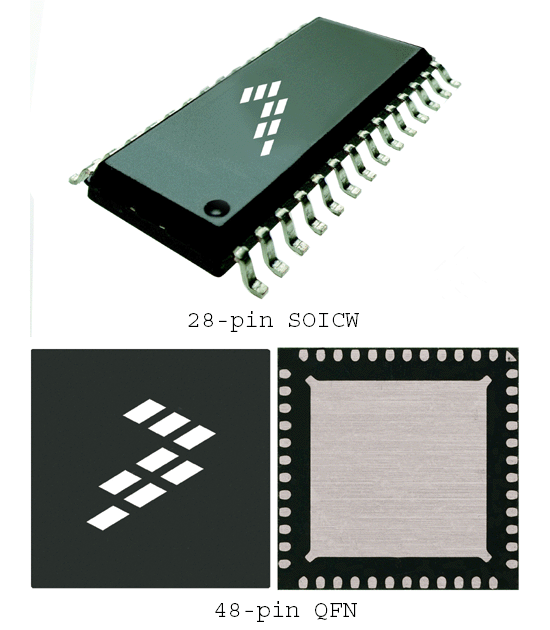

NXP S9S12P32J0VFT 16Bit Microcontroller, S12P, 32MHz, 32KB, 2KB, 48Pins, QFN

Overview

Ideal for body control applications, the S12P family of CAN microcontrollers MCUs offers the enhanced features of 16-bit performance at the value of 8-bit MCUs.

The S12P family bridges the gap between 8- and 16-bit automotive CAN MCUs and serves as the entry point into ®.s 16-bit family offerings.

Compatible and scalable with the S12XS family, the S12P allows customers to have a range of lower sized memory and feature set options for their applications.

The family includes four devices that offer an array of program and data flash memory sizes with error correcting codes ECC, RAM, a MSCAN module and package options that scale from 48-80 pins.

MoreLess

## Features

* S12 core, 32 MHz bus

* Up to 128 KB of on-chip flash with ECC

* Up to 6 KB RAM

* 4 KB DataFlash® with ECC

* MSCAN module supporting CAN protocol 2.0 A/B

* SCI supporting LIN communications

* Serial peripheral interface SPI

* 8-channel, 16-bit timer supporting input capture, output compare, counter and pulse accumulator functions

* 10-channel, 12-bit resolution successive approximation analog-to-digital converter ADC

* Pulse width modulation PWM module with 6 x 8-bit channels

* Phase locked loop PLL frequency multiplier with internal filter

* 4-16 MHz amplitude controlled Pierce oscillator

* 1 MHz internal RC oscillator

* Autonomous periodic interrupt API

* This product is included in NXP ®.s product longevity program, with assured supply for a minimum of 15 years after launch

## Features

* This product is included in NXP ®.s product longevity program, with assured supply for a minimum of 15 years after launchComparison Table

### S12P Family Members

| S12P32| S12P64| S12P96| S12P128
