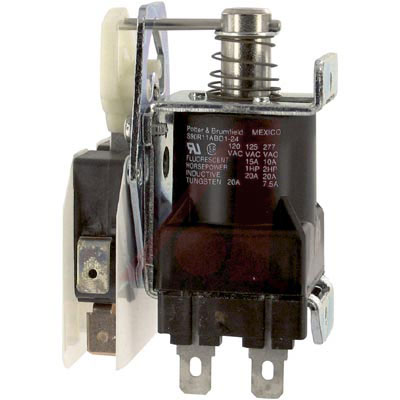

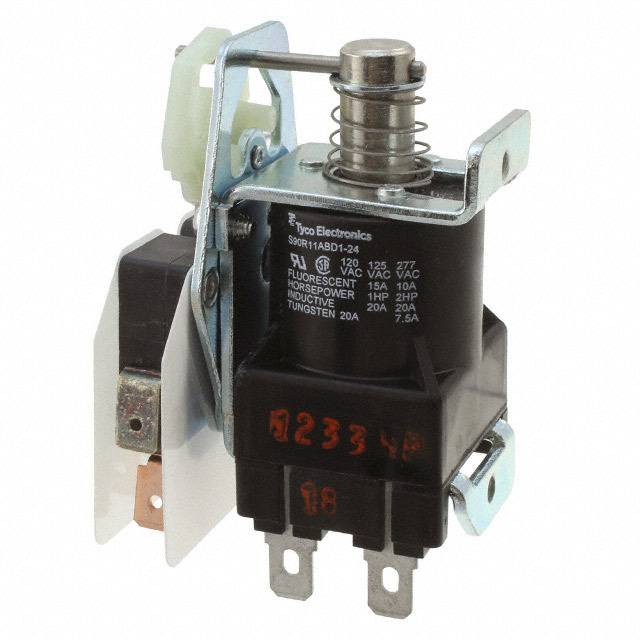

Electromechanical Relay DPDT 20A 24VAC 8.7Ω Plug-In
Socket Mounting, 20 A Contact , 24 VAC Voltage Rating, Industrial Relay
* Socket mounting
* Quick connect terminals
The product is a relay with silver contact material and socket mounting.
得捷:
RELAY IMPULSE DPDT 20A 24V
贸泽:
Solenoids DPDT 20A QC 24VAC
艾睿:
Electromechanical Relay 24VAC 8.7Ohm 20A DPDT 50.8x50.3x77.47mm Plug-In Impulse Relay
Allied Electronics:
Relay; E-Mech; Latching; DPDT; Cur-Rtg 20A; Ctrl-V 24AC; Vol-Rtg 277AC; Panel Mount
Chip1Stop:
Electromechanical Relay DPDT 20A 24VAC 8.7Ohm Plug-In
Verical:
Electromechanical Relay 24VAC 8.7Ohm 20A DPDT50.8x50.3x77.47mm Plug-In Impulse Relay
MASTER:
Electromechanical Relay 24VAC 8.7Ohm 20A DPDT 50.8x50.3x77.47mm Plug-In Impulse Relay
Online Components:
Electromechanical Relay 24VAC 8.7Ohm 20A DPDT 50.8x50.3x77.47mm Plug-In Impulse Relay
Electro Sonic:
Electromechanical Relay 24VAC 8.7Ohm 20A DPDT 50.8x50.3x77.47mm Plug-In Impulse Relay
额定电压AC 120 V
额定电流 20 A
额定功率 9.00 W
触点类型 DPDT
功耗 9.00 W
触点额定电流 20 A
线圈电压 24 VAC
线圈电流 375 mA
线圈电压AC 24 V
线圈电阻 8.7 Ω
载流 20.0 A
额定电流Max 20 A
线圈功率 9 VA
工作温度Max 60 ℃
工作温度Min -10 ℃
额定电压 277 VAC
额定电压AC Max 120 V
安装方式 PCB, Quick Connect
长度 68.6 mm
宽度 50.8 mm
高度 77.47 mm
触点材质 Silver
工作温度 -10℃ ~ 60℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
ELV标准 Non-Compliant
ECCN代码 EAR99
HTS代码 8536410050
