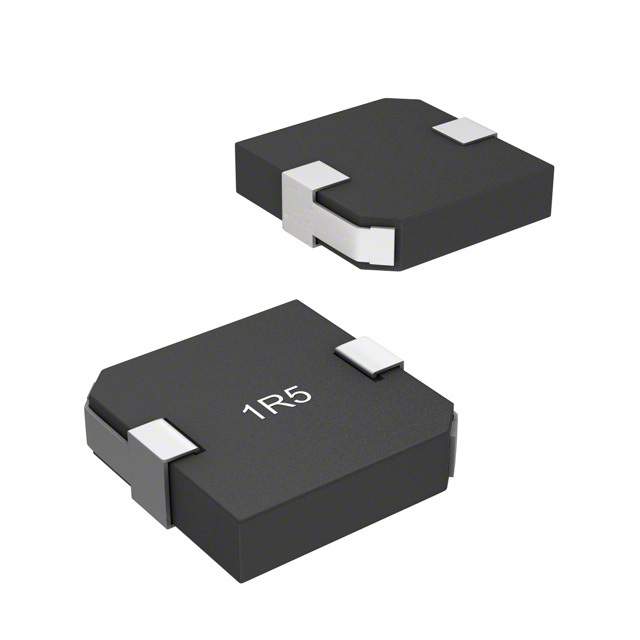

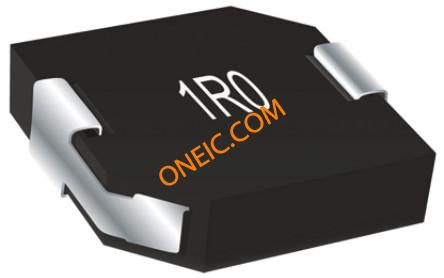

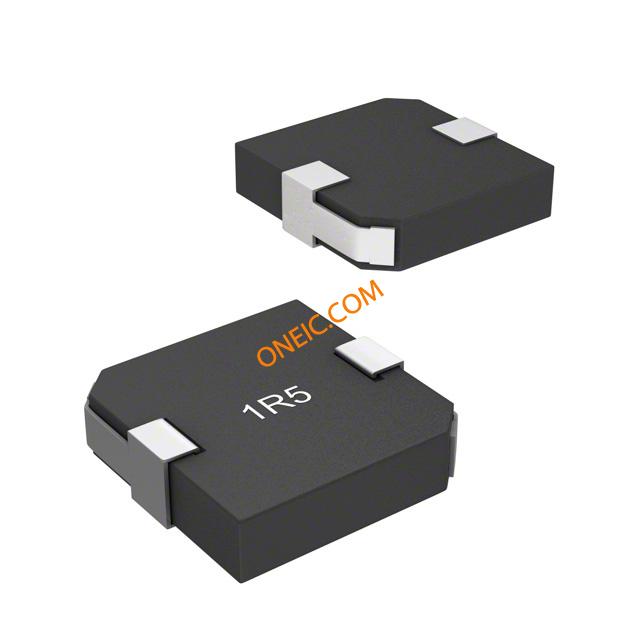

屏蔽式功率电感器 Shielded Power Inductors
屏蔽 - 器 8 毫欧最大 非标准
得捷:
FIXED IND 2.2UH 16A 8 MOHM SMD
贸泽:
Fixed Inductors 2.2uH 20% SMD 1235
艾睿:
An ideal space-saving electronic component is this power SRP1235-2R2M surface mount inductor from Bourns. This SMD inductor has a minimum operating temperature of -55 °C and a maximum of 150 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. It has a tolerance of 20%. This SMD inductor has a maximum DC current of 16 A with a maximum resistance of 8m Ohm. This device is made with wirewound technology. Its test frequency is 100K Hz, while its minimum self-resonant frequency is 27MTyp Hz. It has an inductance of 2.2u H. This product is 13.9 mm long, 3.7 mm tall and 13.5 mm deep.
安富利:
Ind Power Shielded Wirewound 2.2uH 20% 100KHz Iron 16A T/R
Chip1Stop:
Inductor Power Shielded Wirewound 2.2uH 20% 100KHz Iron 16A 8mOhm DCR T/R
Newark:
# BOURNS SRP1235-2R2M Surface Mount Power Inductor, SRP1235 Series, 2.2 µH, 16 A, 20 A, Shielded, 8000 µohm
额定电流 16 A
容差 ±20 %
电感 2.2 µH
自谐频率 27 MHz
共振频率 27.0 MHz
电感公差 ±20 %
测试频率 100 kHz
电阻DC) ≤8 mΩ
工作温度Max 150 ℃
工作温度Min -55 ℃
电阻DC Max 0.008 Ω
安装方式 Surface Mount
引脚数 2
长度 13.9 mm
宽度 13.5 mm
高度 3.7 mm
工作温度 -55℃ ~ 150℃
产品生命周期 End of Life
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SRP1235-2R2M Bourns J.W. Miller 伯恩斯 | 当前型号 | 当前型号 |
HM72A-122R2LLFTR13 Magnetics | 功能相似 | SRP1235-2R2M和HM72A-122R2LLFTR13的区别 |
