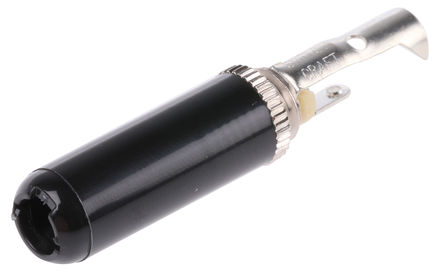

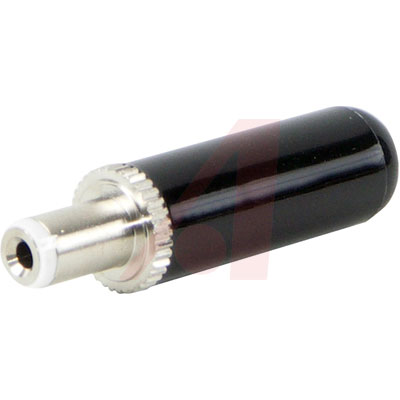

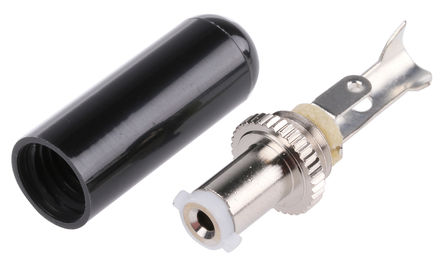

S760BK

2.1mm 插头用底盘安装插座及端接到 2.1mm 和 2.5mm 插头和插座的适配器导线。 触点为镀镍/镀银黄铜。连接器主体由 ABS 塑料模制而成。

锁定型直角电源插座和插头

适用于需要快速、安全且节省空间的面板安装方式的应用

使用精密调节环将插头和插座紧密接合

使用键控插头和开槽插座将组件稳固紧定到位，使得额外牢固

得捷:
CONN POWER PLUG SOLDER EYELET

欧时:
Switchcraft 直向 直流适配器 S760BK, 5A, 电缆安装, 镀镍触芯

贸泽:
DC Power Connectors LOCKING MINI PWR PLG WHITE 0.080" 2.0mm

艾睿:
Whether you have an AC or DC power entry module, this S760BK power connector from Switchcraft comes in a variety of types to support all sorts of modules. This PL connector&s;s 2 contacts that are made out of copper alloy and plated with nickel. It has a straight body orientation. It has a plug type gender. This connector has a single port. This device has a maximum current rating of 5 A. S760BK is housed in plastic. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. It has 2 terminals. This product is 37.1 mm long with a diameter of 9.5 mm.

Allied Electronics:
Conn; AV; Power; Plug; Mini; 2.0mm; IDPinSize; Straight; Insulated; Locking; White

Verical:
Conn Power PL 2 POS ST Cable Mount 2 Terminal 1 Port T/R

Newark:
# SWITCHCRAFT  S760BK  DC Power Connector, Plug, 5 A, 2 mm, Cable Mount

MASTER:
Conn Power PL 2 POS ST Cable Mount 2 Terminal 1 Port T/R

Online Components:
Conn Power PL 2 POS ST Cable Mount 2 Terminal 1 Port T/R

Electro Sonic:
Conn Power PL 2 POS ST Cable Mount 2 Terminal 1 Port T/R
