SRN1060-471M

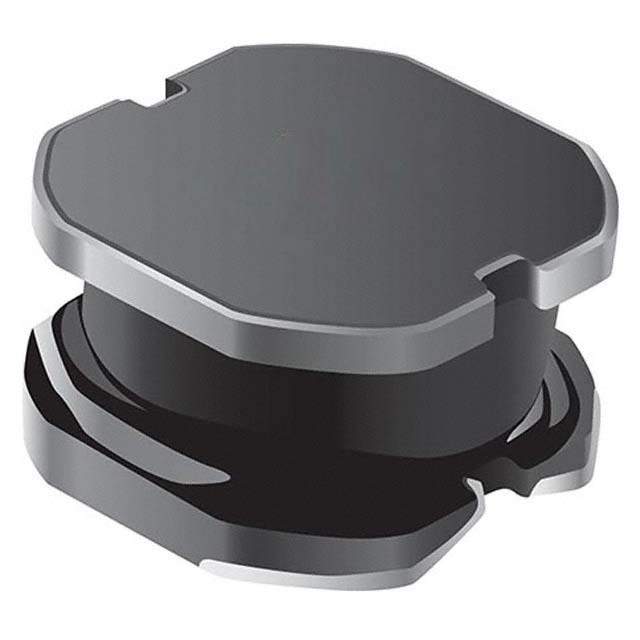

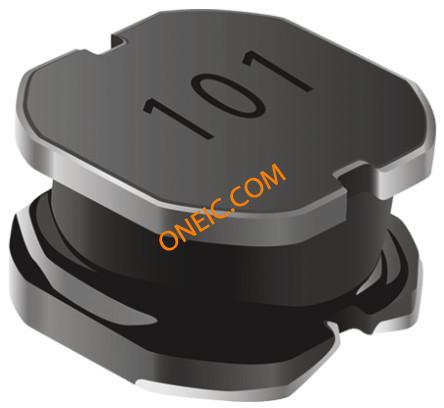

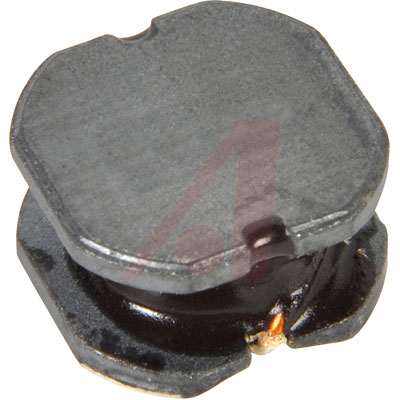

BOURNS  SRN1060-471M  表面贴装功率电感器, SRN1060系列, 470 µH, ± 20%, 屏蔽, 0.95 ohm, 800 mA

SRN1060 系列半磁性屏蔽线绕扼流圈

SRN1060 系列微型贴片式半屏蔽功率器。

高电感

电感范围：10 至 470μH

额定电流高达 5.4A

应用包括：直流/直流转换器；笔记本电脑；数字摄像机；电视、LCD 显示屏

得捷:
FIXED IND 470UH 800MA 950MOHM SM

欧时:
Bourns SRN1060 系列 屏蔽 铁氧体芯材 470 μH 绕线贴片电感器 SRN1060-471M, ±20%容差, 800mA rms Idc

立创商城:
470uH ±20% 800mA 950mΩ

贸泽:
固定电感器 470uH 20% SMD 1060

e络盟:
功率电感SMD, 470 µH, 800 mA, 半屏蔽, 800 mA, SRN1060系列, 10mm x 9.8mm x 6mm

艾睿:
Inductor Power Semi-Shielded Wirewound 470uH 20% 100KHz 13Q-Factor Ferrite 800mA 950mOhm DCR T/R

Allied Electronics:
Inductor; Semi-Shielded; Ind 470 uH; Tol 20%; Cur-Rtg 0.8 A; SMT

安富利:
Ind Power Semi-Shielded Wirewound 470uH 20% 100KHz Ferrite 800mA T/R

Verical:
Inductor Power Semi-Shielded Wirewound 470uH 20% 100KHz 13Q-Factor Ferrite 800mA 950mOhm DCR T/R

Newark:
# BOURNS  SRN1060-471M  Surface Mount Power Inductor, SRN1060 Series, 470 µH, 800 mA, 800 mA, Semishielded, 0.95 ohm

MASTER:
Inductor Power Semi-Shielded Wirewound 470uH 20% 100KHz 13Q-Factor Ferrite 800mA 950mOhm DCR T/R

Online Components:
Inductor Power Semi-Shielded Wirewound 470uH 20% 100KHz 13Q-Factor Ferrite 800mA 950mOhm DCR T/R

Electro Sonic:
Inductor Power Semi-Shielded Wirewound 470uH 20% 100KHz 13Q-Factor Ferrite 800mA 950mOhm DCR T/R
