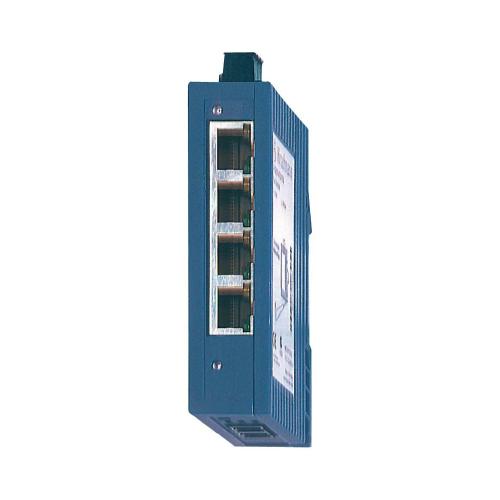

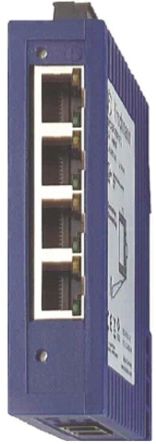

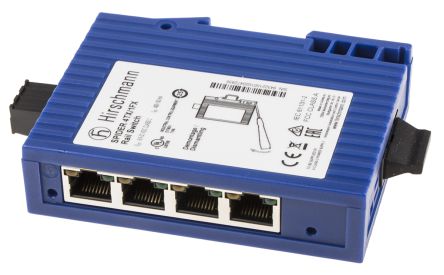

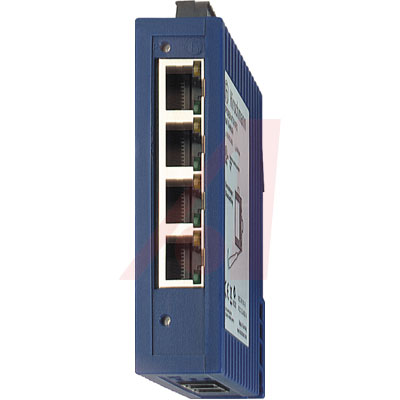

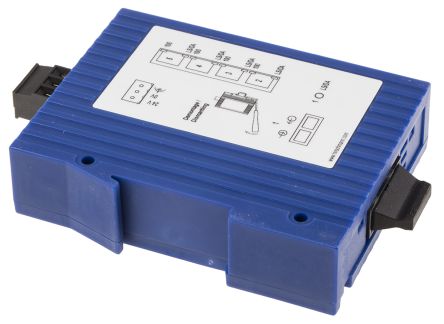

SPIDER 4TX/1FX

HIRSCHMANN  SPIDER 4TX/1FX  轨道开关

The from is an entry level industrial Ethernet rail switch. It provides users with an economical, yet highly reliable hardened Ethernet switch. This Ethernet switch has 4 x 10/100BASE-TX, TP cable, RJ45 sockets, auto crossing, auto negotiation, auto polarity, 1 x 100BASE-FX, MM cable and SC sockets.

.

Store and forward switching mode

.

Supports Ethernet and fast Ethernet 10/100Mbit/s

.

Operating voltage range from 9.6VDC to 32VDC

.

Maximum current consumption of 150mA at 24VDC

.

Maximum power consumption of 3.9W at 24VDC

.

Operating temperature range from 0°C to 60°C

.

Dimension is 25mm x 114mm x 79mm W x H x D

.

35mm DIN rail mounting

.

IP30 protection class

.

Approved by cUL 508 standard
