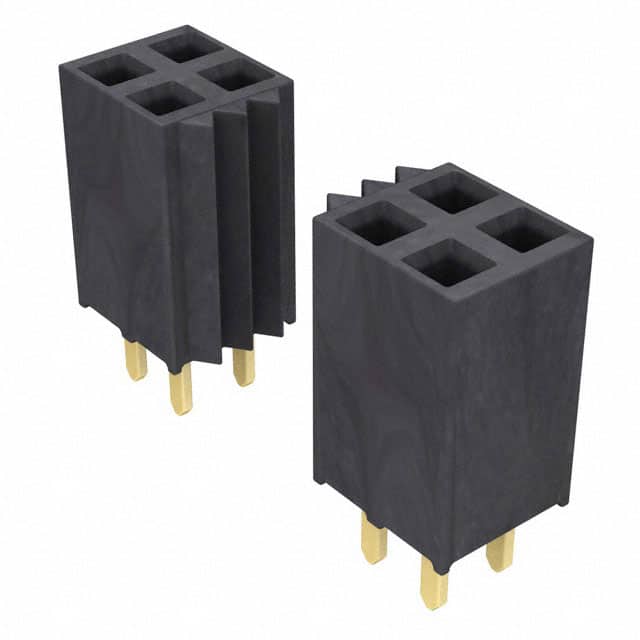

SSW-120-21-G-D

SAMTEC SSW-120-21G-D Board-To-Board Connector, 2.54mm, 40Contacts, Receptacle, SSW Series, Through Hole, 2Rows

40 位置 插座 0.100"（2.54mm） 通孔 镀金

欧时:
Tiger Buy Skt Strip w/t PCB Tails 0.100"

得捷:
CONN RCPT 40POS 0.1 GOLD PCB

艾睿:
Samtec&s;s socket strip SSW-120-21-G-D header connector is a great way to reduce safety concerns in projects where there is a possibility of accidentally shorting electronic components. This SKT connector&s;s 40 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a straight body orientation. It has a socket type gender. This is a 2-row connector. It has a maximum voltage rating of 550 VAC. Its pitch is 2.54 mm. This device has a maximum current rating of 5.7 A/contact. SSW-120-21-G-D is housed in black liquid crystal polymer. This connector has an operating temperature of -55 to 125 °C. This product is 51.31 mm long, 8.51 mm tall and 4.95 mm deep. It uses the solder termination method.

安富利:
Conn Socket Strip SKT 40 POS 2.54mm Solder ST Thru-Hole

Newark:
# SAMTEC  SSW-120-21-G-D  Board-To-Board Connector, 2.54 mm, 40 Contacts, Receptacle, SSW Series, Through Hole, 2 Rows
