SL-110-G-10

SAMTEC SL-110G-10 Board-To-Board Connector, 2.54mm, 10Contacts, Receptacle, SL Series, Through Hole, 1Rows

10 位置 插座 0.100"（2.54mm） 通孔 镀金

得捷:
CONN RCPT .100" 10POS GOLD PCB

立创商城:
2.54mm

艾睿:

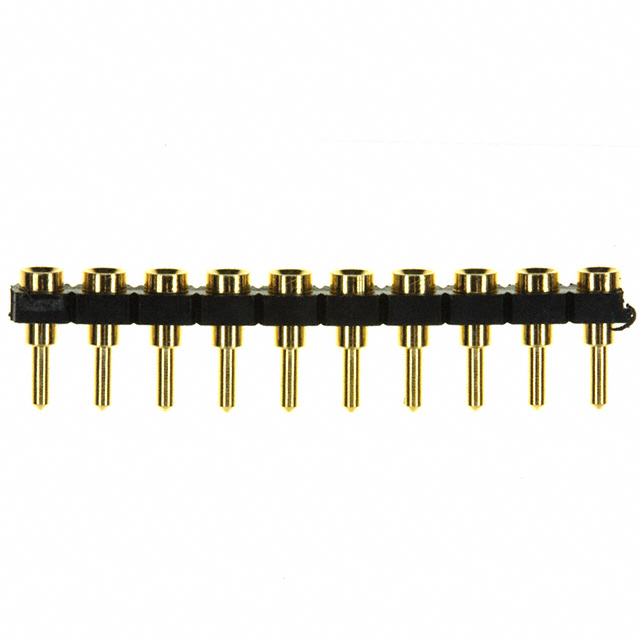

Support physical configuration options for jumper posts by mounting this socket strip SL-110-G-10 header connector from Samtec. This SKT connector&s;s 10 contacts that are made out of beryllium copper and plated with gold over nickel. This is a 1-row connector. Its pitch is 2.54 mm. It has a straight body orientation. It has a socket type gender. This device has a maximum current rating of 1 A. This product comes packaged in bulk, so the parts will be stored loosely. This product is 25.4 mm long, 3.1 mm tall and 2.54 mm deep. This connector has an operating temperature of -55 to 125 °C. It uses the solder termination method. SL-110-G-10 is housed in black polyester.

安富利:
Conn Socket Strip SKT 10 POS 2.54mm Solder ST Thru-Hole

Newark:
# SAMTEC  SL-110-G-10  Board-To-Board Connector, 2.54 mm, 10 Contacts, Receptacle, SL Series, Through Hole, 1 Rows
