SSW-116-02-G-D-RA

SAMTEC SSW-116-02-G-D-RA Board-To-Board Connector, 2.54mm, 32Contacts, Receptacle, SSW Series, Through Hole, 2Rows

32 位置 插座 0.100"（2.54mm） 通孔，直角 镀金

欧时:
Tiger Buy Skt Strip w/t PCB Tails 0.100"

得捷:
CONN RCPT 32POS 0.1 GOLD PCB R/A

艾睿:

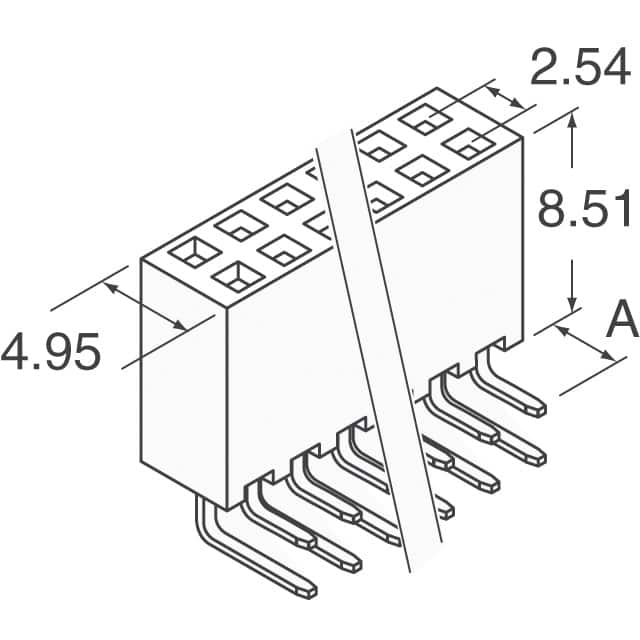

Reduce the possibility of accidentally shorting pins when using a printed circuit board with this socket strip SSW-116-02-G-D-RA header connector from Samtec. This SKT connector&s;s 32 contacts that are made out of phosphor bronze and plated with gold over nickel. This is a 2-row connector. It has a socket type gender. Its pitch is 2.54 mm. It has a maximum voltage rating of 550 VAC. It has a right angle body orientation. This device has a maximum current rating of 5.7 A/contact. This product is 41.15 mm long, 4.95 mm tall and 12.57 mm deep. It uses the solder termination method. SSW-116-02-G-D-RA is housed in black liquid crystal polymer. This connector has an operating temperature of -55 to 125 °C.

安富利:
Conn Socket Strip SKT 32 POS 2.54mm Solder RA Thru-Hole

Newark:
# SAMTEC  SSW-116-02-G-D-RA  Board-To-Board Connector, 2.54 mm, 32 Contacts, Receptacle, SSW Series, Through Hole, 2 Rows
