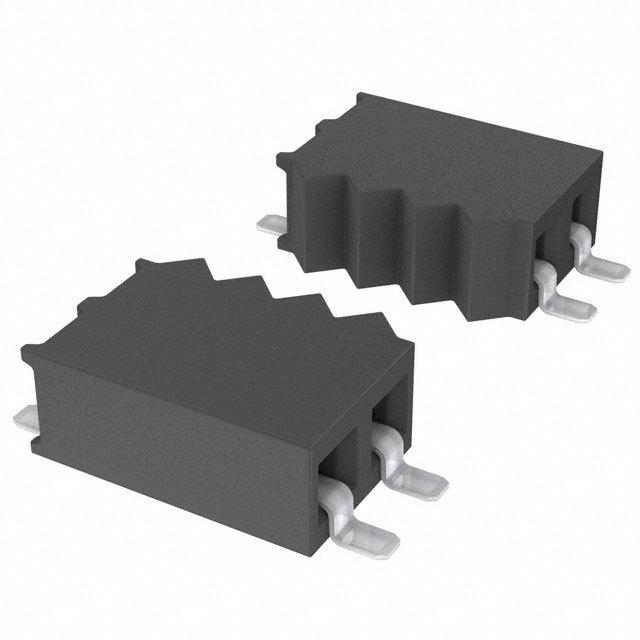

SSM-117-L-SH

集管和线壳 .100" 2.54 mm Tiger Claw Surface Mount Socket Strip

17 Position Receptacle Connector 0.100" 2.54mm Surface Mount, Right Angle Gold

立创商城:
2.54mm

得捷:
CONN RCPT 17POS 0.1 GOLD SMD R/A

贸泽:
集管和线壳 .100" 2.54 mm Tiger Claw Surface Mount Socket Strip

艾睿:
Easily mount this socket strip SSM-117-L-SH header connector from Samtec onto your PCB project to support a variety of physical configuration options. This SKT connector&s;s 17 contacts that are made out of phosphor bronze and plated with gold over nickel. This is a 1-row connector. It has a socket type gender. It has a maximum voltage rating of 510 VDC|360VAC. Its pitch is 2.54 mm. It has a right angle body orientation. This device has a maximum current rating of 5.2 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. SSM-117-L-SH is housed in black liquid crystal polymer. It uses the solder termination method. This product is 43.18 mm long, 3.18 mm tall and 11 mm deep. This connector has an operating temperature of -55 to 125 °C.

安富利:
Conn Socket Strip SKT 17 POS 2.54mm Solder RA SMD Tube

Chip1Stop:
Conn Socket Strip SKT 17 POS 2.54mm Solder RA SMD Tube

Verical:
Conn Socket Strip SKT 17 POS 2.54mm Solder RA Side Entry SMD Tube

Newark:
# SAMTEC  SSM-117-L-SH  Board-To-Board Connector, 2.54 mm, 17 Contacts, Receptacle, SSM Series, Surface Mount, 1 Rows
