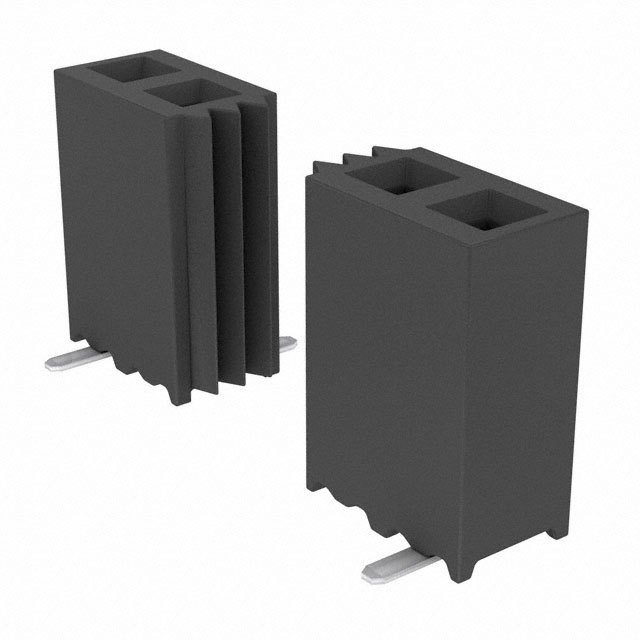

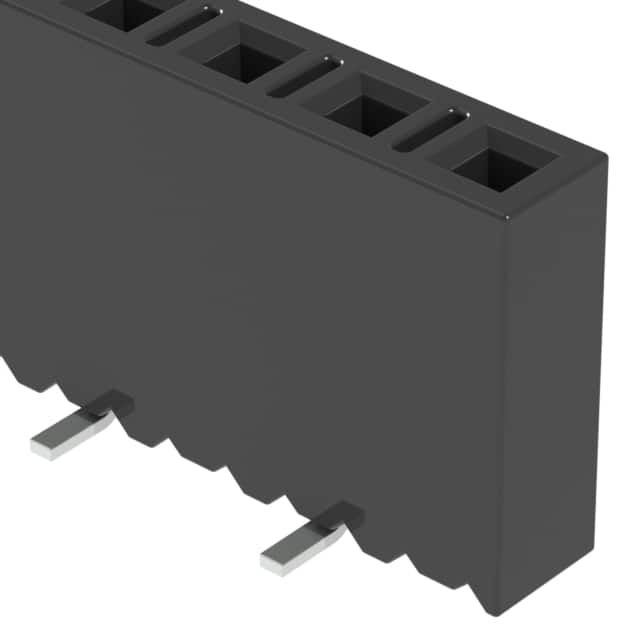

SSM-117-L-SV

板至板连接, 2.54 mm, 17 触点, 插座, SSM Series, 表面安装　, 1 排

17 Position Receptacle, Pass Through Connector 0.100" 2.54mm Surface Mount Gold

欧时:
SOCKET 1ROW 17POS 0.1 GOLD SMD

得捷:
CONN RCPT 17POS 0.1 GOLD SMD

e络盟:
板至板连接, 2.54 mm, 17 触点, 插座, SSM Series, 表面安装　, 1 排

艾睿:
As an added safety precaution, the socket strip SSM-117-L-SV header connector from Samtec will prevent and protect components on your circuit board from accidentally touching each other. This SKT connector&s;s 17 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a socket type gender. It has a straight body orientation. Its pitch is 2.54 mm. It has a maximum voltage rating of 510 VDC|360VAC. This is a 1-row connector. This device has a maximum current rating of 5.2 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. It uses the solder termination method. This connector has an operating temperature of -55 to 125 °C. This product is 43.18 mm long, 7.37 mm tall and 4.42 mm deep. SSM-117-L-SV is housed in black liquid crystal polymer.

安富利:
Conn Socket Strip SKT 17 POS 2.54mm Solder ST SMD Tube

Newark:
# SAMTEC  SSM-117-L-SV  Board-To-Board Connector, 2.54 mm, 17 Contacts, Receptacle, SSM Series, Surface Mount, 1 Rows
