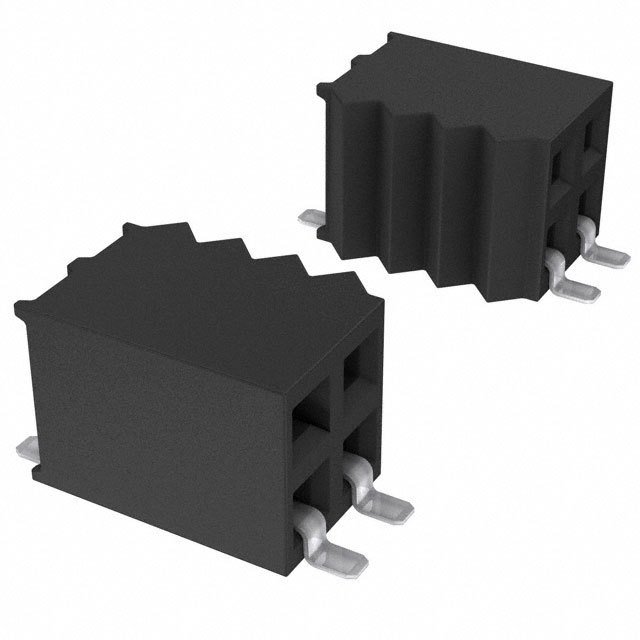

SSM-108-L-DH

Conn Socket Strip SKT 16POS 2.54mm Solder RA SMD Tube

16 位置 插座 0.100"（2.54mm） 表面贴装，直角 镀金

得捷:
CONN RCPT .100" 16POS DUAL HORZ

立创商城:
2.54mm

艾睿:

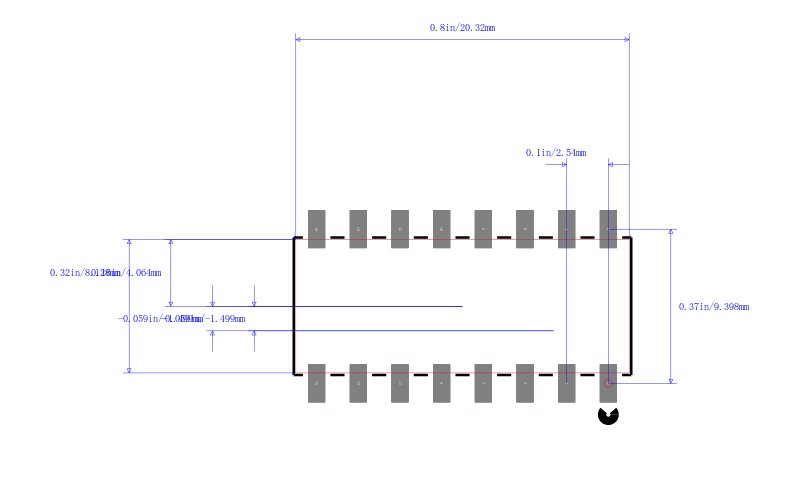

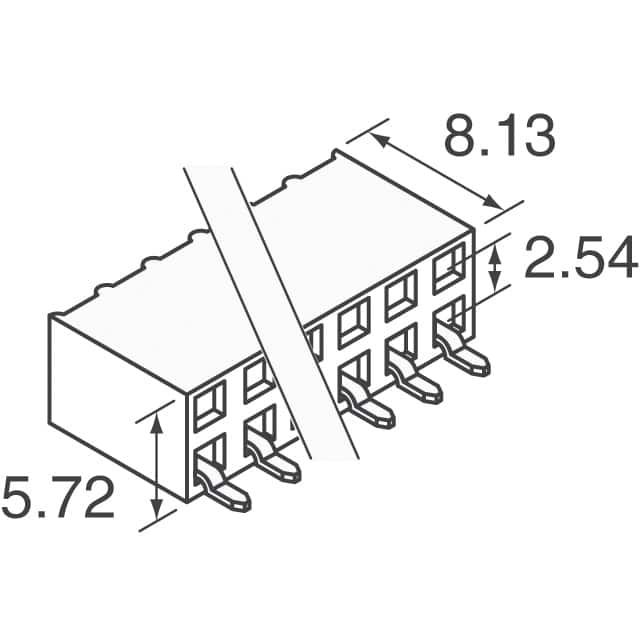

Reduce safety concerns with this socket strip SSM-108-L-DH header connector from Samtec which will reduce the possibility of accidentally shorting pins when a printed circuit board is being used. This SKT connector&s;s 16 contacts that are made out of phosphor bronze and plated with gold over nickel. Its pitch is 2.54 mm. It has a maximum voltage rating of 510 VDC|360VAC. It has a socket type gender. This is a 2-row connector. It has a right angle body orientation. This device has a maximum current rating of 5.2 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This connector has an operating temperature of -55 to 125 °C. SSM-108-L-DH is housed in black liquid crystal polymer. This product is 20.32 mm long, 5.72 mm tall and 11.18 mm deep. It uses the solder termination method.

安富利:
Conn Socket Strip SKT 16 POS 2.54mm Solder RA SMD Tube

Newark:
# SAMTEC  SSM-108-L-DH  Board-To-Board Connector, 2.54 mm, 16 Contacts, Receptacle, SSM Series, Surface Mount, 2 Rows
