SSM-111-L-DH

SAMTEC SSM-111-L-DH Board-To-Board Connector, 2.54mm, 22Contacts, Receptacle, SSM Series, Surface Mount, 2Rows

22 位置 插座 0.100"（2.54mm） 表面贴装，直角 镀金

得捷:
CONN RCPT .100" 22POS DUAL HORZ

立创商城:
2.54mm

艾睿:

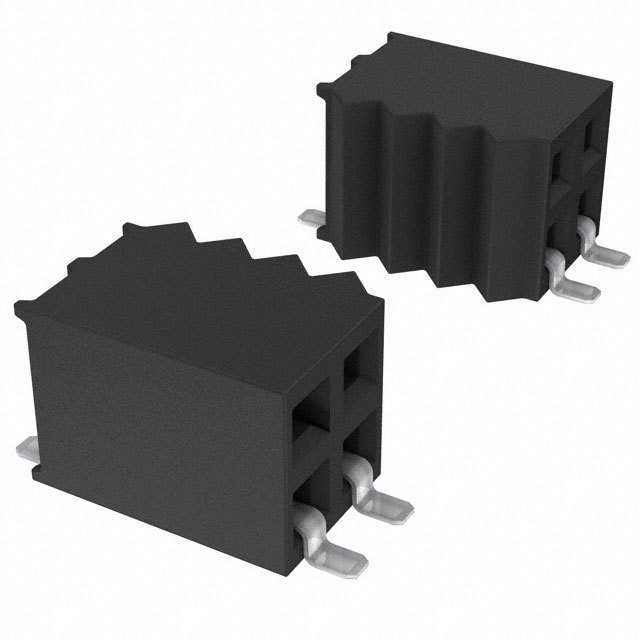

Thanks to Samtec&s;s socket strip SSM-111-L-DH header connector, you can reduce the possibility of accidentally shorting out any pins on your printed circuit. This SKT connector&s;s 22 contacts that are made out of phosphor bronze and plated with gold over nickel. Its pitch is 2.54 mm. It has a maximum voltage rating of 510 VDC|360VAC. It has a socket type gender. It has a right angle body orientation. This is a 2-row connector. This device has a maximum current rating of 5.2 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This connector has an operating temperature of -55 to 125 °C. It uses the solder termination method. SSM-111-L-DH is housed in black liquid crystal polymer. This product is 27.94 mm long, 5.72 mm tall and 11.18 mm deep.

Newark:
# SAMTEC  SSM-111-L-DH  Board-To-Board Connector, 2.54 mm, 22 Contacts, Receptacle, SSM Series, Surface Mount, 2 Rows
