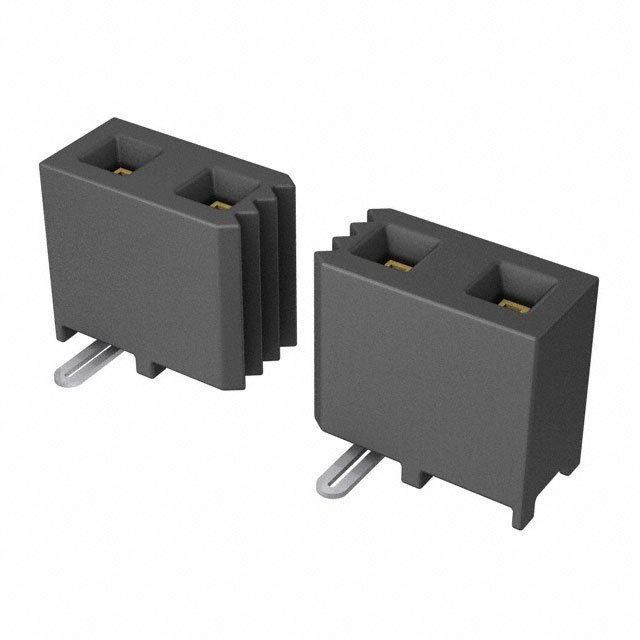

SAMTEC SMM-114-02-S-S Board-To-Board Connector, 2mm, 14Contacts, Receptacle, SMM Series, Surface Mount, 1Rows
14 位置 插座 表面贴装型
得捷:
CONN RCPT 14POS 0.079 GOLD SMD
艾睿:
Protect your printed circuit boards from accidental damages with Samtec&s;s socket strip SMM-114-02-S-S header connector. This SKT connector&s;s 14 contacts that are made out of beryllium copper and plated with gold over nickel. It has a straight body orientation. It has a maximum voltage rating of 350 VAC. It has a socket type gender. This is a 1-row connector. Its pitch is 2 mm. This device has a maximum current rating of 3.2 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. SMM-114-02-S-S is housed in black liquid crystal polymer. It uses the solder termination method. This product is 28 mm long, 3.68 mm tall and 4.32 mm deep. This connector has an operating temperature of -55 to 125 °C.
安富利:
Conn Socket Strip SKT 14 POS 2mm Solder ST SMD Tube
Newark:
# SAMTEC SMM-114-02-S-S Board-To-Board Connector, 2 mm, 14 Contacts, Receptacle, SMM Series, Surface Mount, 1 Rows
触点数 14
极性 Female
触点电镀 Gold
额定电流 3.2A/触头
排数 1
针脚数 14
拔插次数 100
额定电流Max 3.2A/触头
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压Max 350 VAC
额定电压 350 VAC
接触电阻Max 10 mΩ
安装方式 Surface Mount

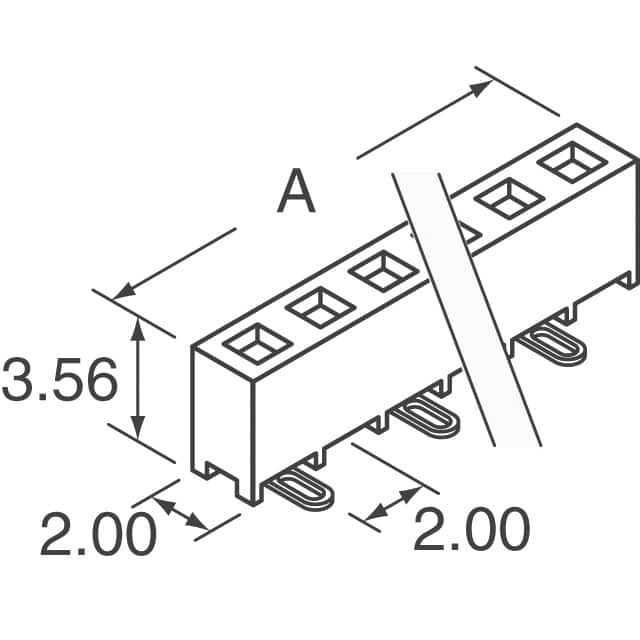

引脚间距 2.00 mm
长度 28.0 mm
宽度 2.00 mm
高度 3.68 mm
引脚间距 2.00 mm
外壳颜色 Black
颜色 Black
触点材质 Beryllium Copper
工作温度 -55℃ ~ 125℃
外壳材质 Plastic
产品生命周期 Active
包装方式 Tube
制造应用 -
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SMM-114-02-S-S Samtec 申泰电子 | 当前型号 | 当前型号 |
SMM-114-02-S-S-TR 申泰电子 | 完全替代 | SMM-114-02-S-S和SMM-114-02-S-S-TR的区别 |
SMM-114-02-S-S-K-TR 申泰电子 | 完全替代 | SMM-114-02-S-S和SMM-114-02-S-S-K-TR的区别 |
