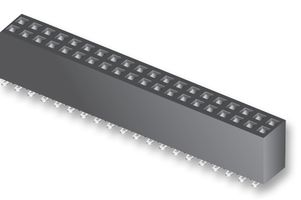

SFMC-106-02-S-D

板至板连接, 1.27 mm, 12 触点, 插座, SFMC Series, 表面安装　, 2 排

The SFMC series from are Tiger Eye high reliability flexible pin count socket strips. These socket strips mates with Samtec TFM, FMTP and FFMD series of connectors.

.

Available in dual row with vertical orientation

.

Pitch spacing is 1.27mm 2 to 50 contacts per row with surface mount lead style -02

.

30µ" gold plated contacts

.

Black liquid crystal polymer insulator material

.

Complies with UL E111594 and CSA 090871_0_000 standards

.

Contact material is beryllium copper BeCu

.

Contact resistance is 15mohm

.

High operating temperature range of -55°C to 125°C
