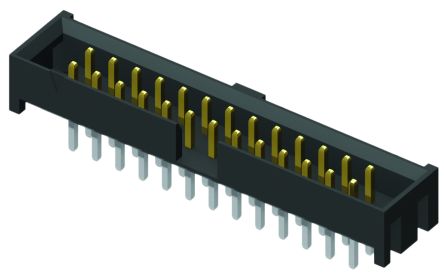

STMM-125-02-L-D

STMM-125-02-L-D图片1
STMM-125-02-L-D图片2
STMM-125-02-L-D图片3
STMM-125-02-L-D图片4
STMM-125-02-L-D图片5
STMM-125-02-L-D图片6
STMM-125-02-L-D图片7
STMM-125-02-L-D图片8
STMM-125-02-L-D概述

SAMTEC  STMM-125-02-L-D  线至板连接器, 护罩, STMM Series, 50 触点, 针座, 2 mm, 通孔安装, 2 排 新

STMM 系列 2.0mm 有罩印刷电路板 IDC 管座

STMM 系列 2.00mm 节距有罩双排 IDC 印刷电路板管座,带极化凹口,用于精确配接和镀金触点。 这些 STMM 系列 2.00mm 印刷电路板管座提供垂直或直角印刷电路板通孔安装或印刷电路板 SMT 安装,具有多达 50 个触点。 如需配接,请参见 TCSD 系列 IDC 插座带状电缆组件


欧时:
STMM-125-02-L-D - Samtec PCB 针座 Flex Stack STMM 系列 50路 2mm节距 2排 直向, 焊接端接, 通孔


得捷:
CONN HEADER VERT 50POS 2MM


e络盟:
线至板连接器, 护罩, STMM Series, 50 触点, 针座, 2 mm, 通孔安装, 2 排


艾睿:
Mounting this shrouded STMM-125-02-L-D header connector from Samtec to your printed circuit board can help you support multiple physical configuration options. This HDR connector&s;s 50 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a header type gender. This is a 2-row connector. It has a straight body orientation. Its pitch is 2 mm. This device has a maximum current rating of 3 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This connector has an operating temperature of -55 to 125 °C. It uses the solder termination method. STMM-125-02-L-D is housed in black nylon. This product is 56.17 mm long, 4.8 mm tall and 6.51 mm deep.


安富利:
Conn Shrouded Header HDR 50 POS 2mm Solder ST Thru-Hole Tube


Verical:
Conn Shrouded Header HDR 50 POS 2mm Solder ST Thru-Hole Tube


Newark:
# SAMTEC  STMM-125-02-L-D  Wire-To-Board Connector, 2 mm, 50 Contacts, Header, STMM Series, Through Hole, 2 Rows


STMM-125-02-L-D中文资料参数规格
技术参数

触点数 50

极性 Male

触点电镀 Gold

额定电流 3 A

排数 2

针脚数 50

额定电流Max 3A/触头

工作温度Max 125 ℃

工作温度Min -55 ℃

封装参数

安装方式 Through Hole

外形尺寸

高度 4.8 mm

物理参数

外壳颜色 Black

触点材质 Phosphor Bronze

工作温度 -55℃ ~ 125℃

其他

产品生命周期 Active

包装方式 Tube

制造应用 -, 工业, Industrial

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/06/15

数据手册

在线购买STMM-125-02-L-D
型号: STMM-125-02-L-D
描述:SAMTEC  STMM-125-02-L-D  线至板连接器, 护罩, STMM Series, 50 触点, 针座, 2 mm, 通孔安装, 2 排 新
替代型号STMM-125-02-L-D
型号/品牌 代替类型 替代型号对比

STMM-125-02-L-D

Samtec 申泰电子

当前型号

当前型号

STMM-125-02-G-D

申泰电子

完全替代

STMM-125-02-L-D和STMM-125-02-G-D的区别

STMM-125-02-S-D

申泰电子

完全替代

STMM-125-02-L-D和STMM-125-02-S-D的区别

STMM-125-02-T-D

申泰电子

功能相似

STMM-125-02-L-D和STMM-125-02-T-D的区别
