SC000045概述

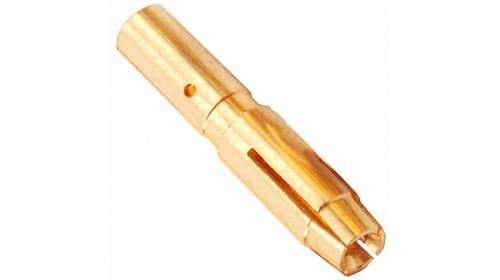

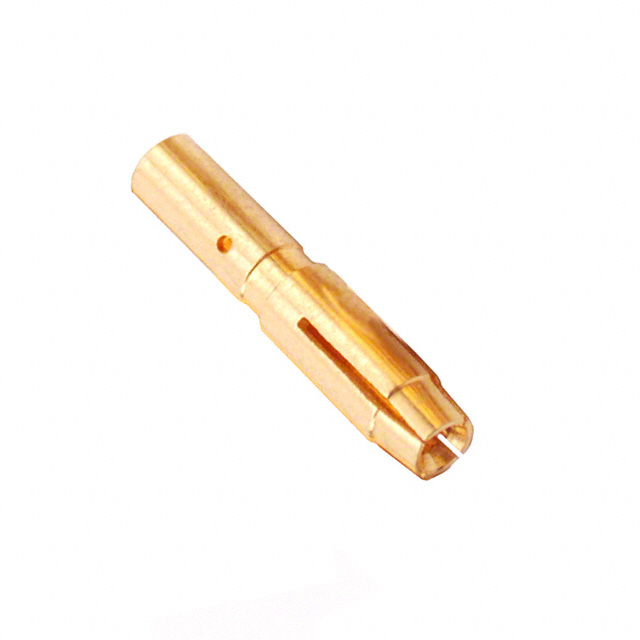

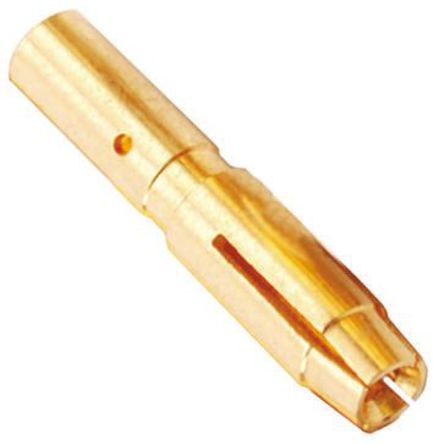

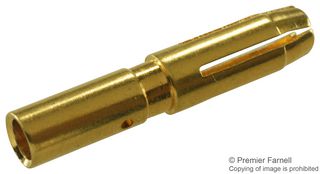

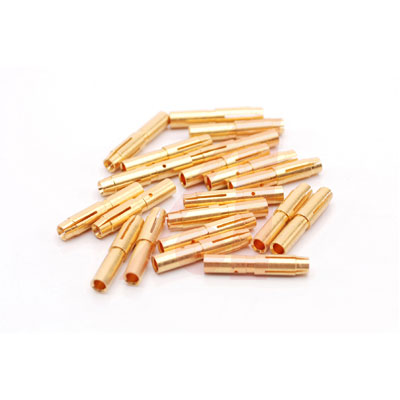

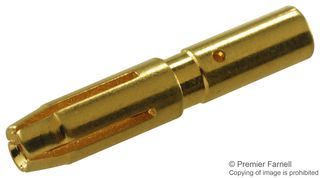

AMPHENOL SINE SYSTEMS  SC000045  圆形连接器触点, RockSolid™, 母, 14 AWG, 14 AWG, 压接, 镀金触芯, MotionGrade系列

MotionGrade M23 系列压接接线端子

### 注

对于 2mm 接线端子,请参阅压接工具 314-7584


欧时:
Amphenol M23 B 系列 压接端接 母 圆形 连接器 触芯 SC000045, 使用于M23 连接器


e络盟:
AMPHENOL SINE SYSTEMS  SC000045  圆形连接器触点, RockSolid™, 母, 14 AWG, 14 AWG, 压接, 镀金触芯, MotionGrade系列


艾睿:
This SC000045 connector contact from Amphenol is will form a perfect mechanical connection, never loose data again. It has a straight body orientation. It has a socket type gender. This has a Connector Circular connector. This connector contact has an operating temperature range of -20 °C to 130 °C. It uses the crimp termination method.


Allied Electronics:
Contact; Socket; Split Machined; Crimp; 2.0 mm Dia.; M23; B Ser.


安富利:
Contact SKT Crimp ST Cable Mount


Verical:
Contact F 2 Size Crimp ST Cable Mount


Newark:
# AMPHENOL SINE SYSTEMS  SC000045  Circular Connector Contact, RockSolid™, MotionGrade M23 Series, Socket, Crimp, 14 AWG, 14 AWG


SC000045中文资料参数规格
技术参数

极性 Female

线规 14AWG ~ 18AWG

触点电镀 Gold

额定电流Max 30 A

工作温度Max 130 ℃

工作温度Min -20 ℃

额定电压 630 V

物理参数

触点材质 Brass

工作温度 -20℃ ~ 130℃

其他

产品生命周期 Active

包装方式 Bulk

制造应用 Robotics, Medical, 机器人, 维护与修理, Automation & Process Control, 自动化与过程控制, Motor Drive & Control, Maintenance & Repair, 医用, 电机驱动与控制

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/12/17

数据手册

在线购买SC000045
型号: SC000045
描述:AMPHENOL SINE SYSTEMS  SC000045  圆形连接器触点, RockSolid™, 母, 14 AWG, 14 AWG, 压接, 镀金触芯, MotionGrade系列
