Cap Ceramic 4.7pF 500V +90±30ppm/℃ 0.25pF SMD 175℃ T/R
4.7pF ±0.25pF 500V Ceramic Capacitor M 1111 2828 Metric
得捷:
CAP CER 4.7PF 500V 1111
贸泽:
Multilayer Ceramic Capacitors MLCC - SMD/SMT 500V4.7pFBCASE +90+-20ppm/oC.25pFTo
艾睿:

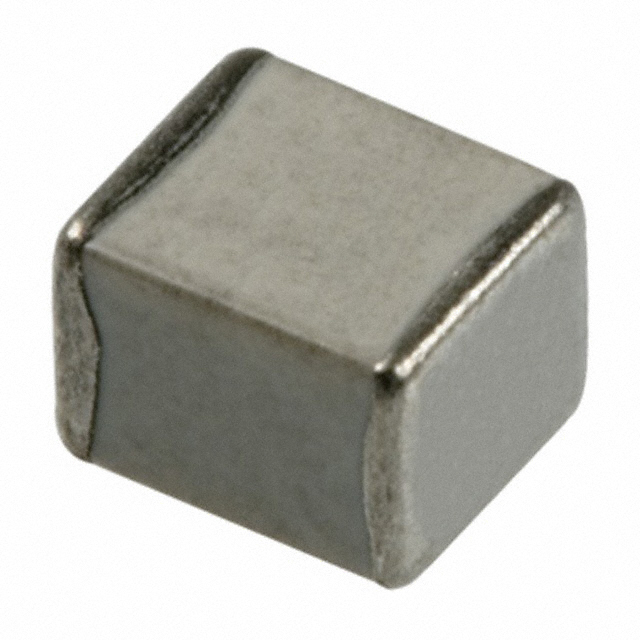

This SQCB7M4R7CATME\500 multilayer ceramic capacitor from AVX has so many uses that it even has a standard classification system for all its uses! It can withstand a voltage of 500 VDC. This MLCC capacitor has a maximum operating temperature of 175 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This product is 2.79 mm long, 2.59Max mm tall and 2.79 mm deep. Its capacitance value is 4.7pF.
安富利:
Cap Ceramic 4.7pF 500V +90±30ppm/C 0.25pF SMD 175°C T/R
Newark:
# AVX SQCB7M4R7CATME\500 Capacitor, RF, Low ESR, 4.7 pF, 500 V, SQ Series, ± 0.25pF, 175 °C
额定电压DC 500 V
电容 4.7 pF
容差 ±0.25 pF
工作温度Max 175 ℃
工作温度Min 55 ℃
额定电压 500 V
安装方式 Surface Mount
引脚数 2
封装 1111
长度 2.79 mm
宽度 2.79 mm
高度 0.762 mm
封装 1111
介质材料 Ceramic
工作温度 -55℃ ~ 175℃
温度系数 ±20 %
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
