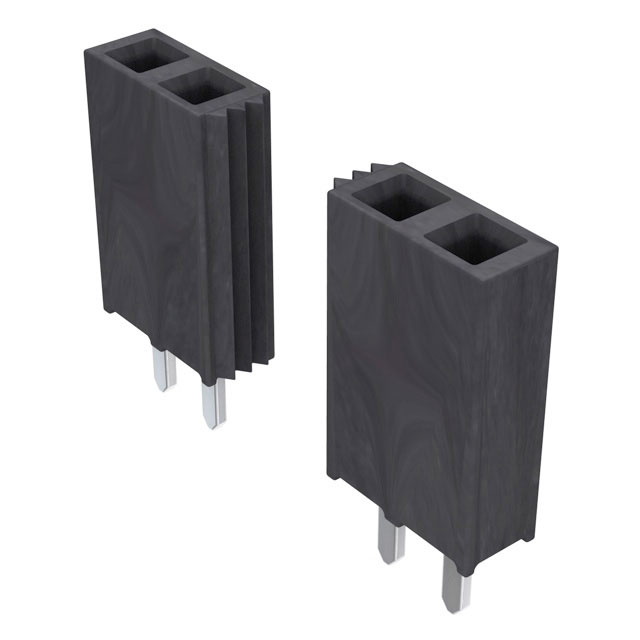

SAMTEC SSW-132-01-T-S Board-To-Board Connector, 2.54mm, 32Contacts, Receptacle, SSW Series, Through Hole, 1Rows
32 位置 插座 0.100"（2.54mm） 通孔 锡
得捷:
CONN RCPT 32POS 0.1 TIN PCB
艾睿:
This solder tail socket strip features high retention, cost-effective Tiger Buy™ contacts with surface mount or through-hole tails in single, double and triple row options. Straight or right-angle pins are available for standard insertion force or low insertion force to mate with .025” square post terminals.
Newark:
# SAMTEC SSW-132-01-T-S Board-To-Board Connector, 2.54 mm, 32 Contacts, Receptacle, SSW Series, Through Hole, 1 Rows
触点数 32
极性 Female
触点电镀 Tin
额定电流 5.7A/触头
排数 1

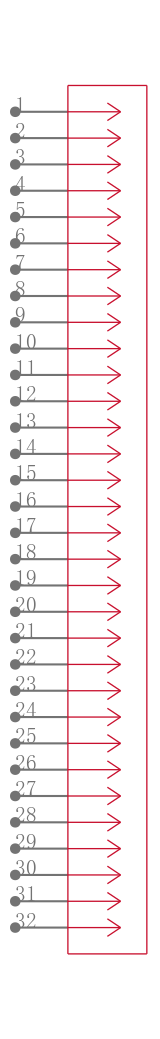

针脚数 32
接触电阻 10.0 mΩ
拔插次数 100
安装方式 Through Hole
引脚间距 2.54 mm
长度 81.8 mm
宽度 2.41 mm
高度 8.51 mm
引脚间距 2.54 mm
外壳颜色 Black
颜色 Black
触点材质 Phosphor Bronze
工作温度 -55℃ ~ 105℃
外壳材质 Plastic
产品生命周期 Active
包装方式 Tube
制造应用 Industrial, -
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
