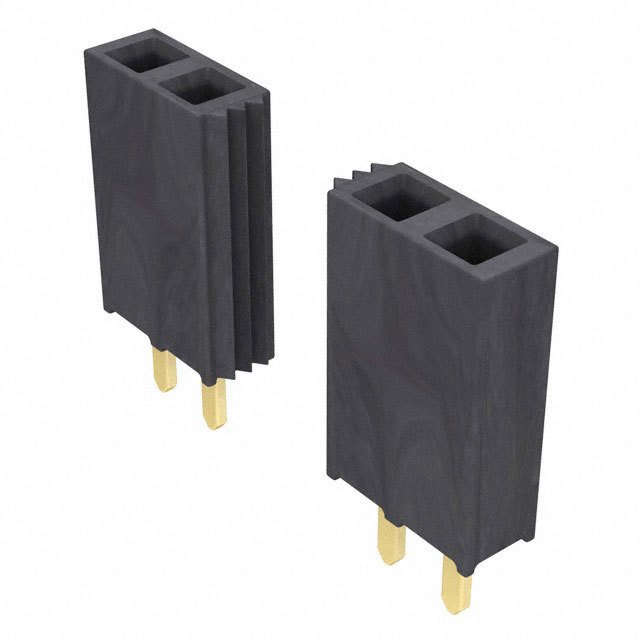

SSW-117-01-G-S

板至板连接, 2.54 mm, 17 触点, 插座, SSW Series, 通孔安装, 1 排

The SSW series from are Tiger Buy socket strips. These are through hole socket strips with 0.025" 0.635mm square post sockets and mates with Samtec TSW, MTSW, MTLW, EW, ZW, TSS, ZSS, TSM, TSSH and HTSS series of connectors. SSW series connectors have standard and low insertion force Tiger Buy contacts with standard solder tails.

.

可选择1/2/3排 -S/-D/-T/-P/-Q选项

.

Pitch spacing is 2.54mm 1 to 50 contacts per row with straight orientation

.

20µ英寸镀金触芯, 工作温度范围: -55°C至125°C

.

Black liquid crystal polymer -S, -D / black high temperature thermoplastic -T insulator material

.

Complies with UL E111594 and CSA 090871_0_000 standards

.

磷青铜触芯材料
