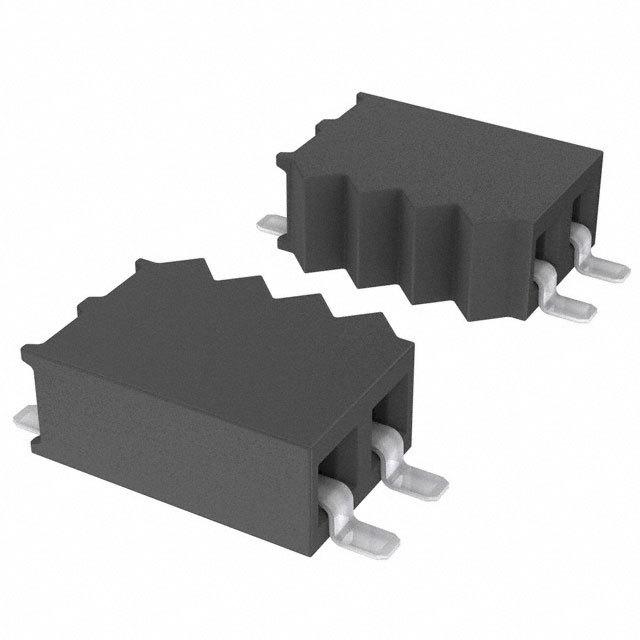

SSM-107-L-SH

Conn Socket Strip SKT 7POS 2.54mm Solder RA SMD Tube

7 Position Receptacle Connector 0.100" 2.54mm Surface Mount, Right Angle Gold

立创商城:
2.54mm

得捷:
CONN RCPT 7POS 0.1 GOLD SMD R/A

艾睿:

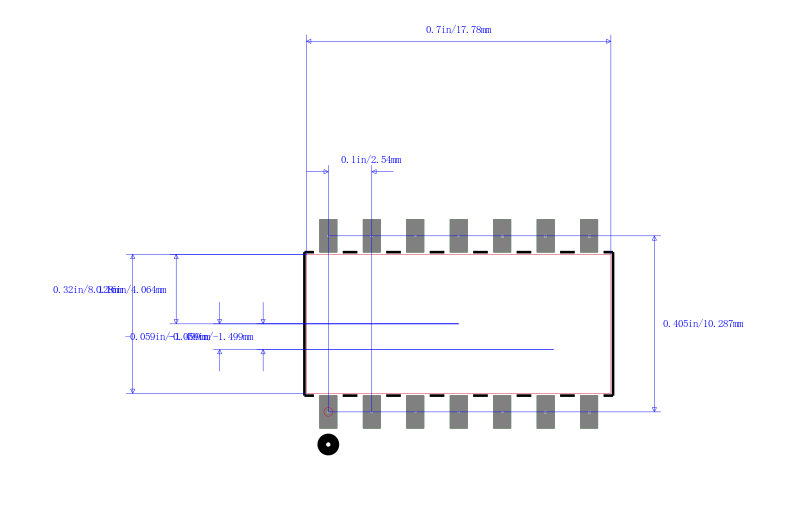

Reduce safety concerns with this socket strip SSM-107-L-SH header connector from Samtec which will reduce the possibility of accidentally shorting pins when a printed circuit board is being used. This SKT connector&s;s 7 contacts that are made out of phosphor bronze and plated with gold over nickel. This is a 1-row connector. It has a socket type gender. It has a right angle body orientation. Its pitch is 2.54 mm. It has a maximum voltage rating of 510 VDC|360VAC. This device has a maximum current rating of 5.2 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. It uses the solder termination method. This product is 17.78 mm long, 3.18 mm tall and 11 mm deep. SSM-107-L-SH is housed in black liquid crystal polymer. This connector has an operating temperature of -55 to 125 °C.

安富利:
Conn Socket Strip SKT 7 POS 2.54mm Solder RA SMD Tube

Newark:
# SAMTEC  SSM-107-L-SH  Board-To-Board Connector, 2.54 mm, 7 Contacts, Receptacle, SSM Series, Surface Mount, 1 Rows
