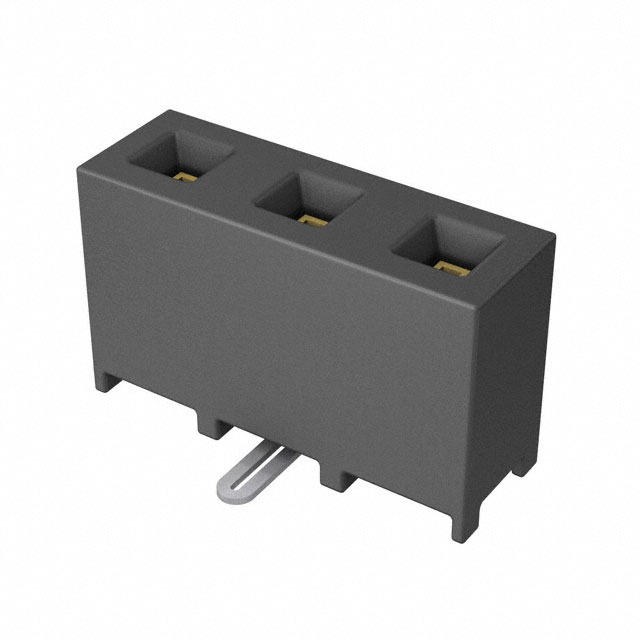

SMM-103-02-S-S

Conn Socket Strip SKT 3POS 2mm Solder ST SMD

3 位置 插座 0.079"（2.00mm） 表面贴装型 镀金

得捷:
CONN RCPT 3POS 0.079 GOLD SMD

艾睿:

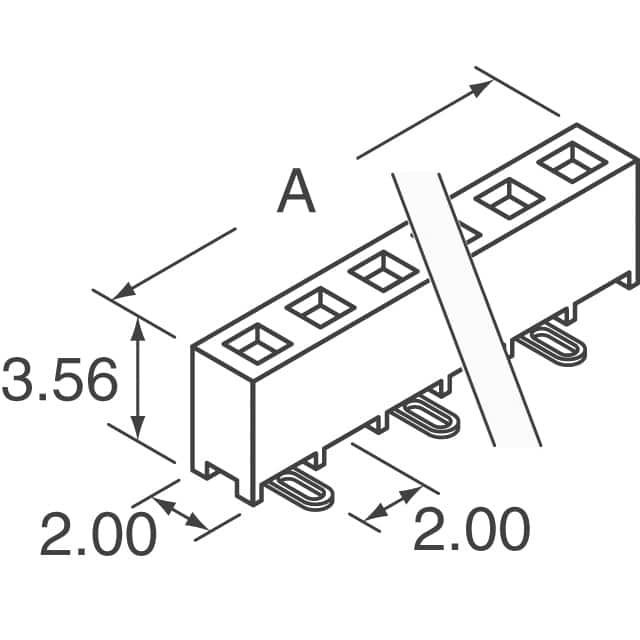

Make strong and binding connections on your circuit boards by adopting this socket strip SMM-103-02-S-S connector from Samtec. This SKT connector&s;s 3 contacts that are made out of beryllium copper and plated with gold over nickel. Its pitch is 2 mm. It has a straight body orientation. It has a socket type gender. It has a maximum voltage rating of 350 VAC. This is a 1-row connector. This device has a maximum current rating of 3.2 A/contact. This product comes packaged in bulk, so the parts will be stored loosely. This product is 6 mm long, 3.68 mm tall and 4.32 mm deep. SMM-103-02-S-S is housed in black liquid crystal polymer. This connector has an operating temperature of -55 to 125 °C. It uses the solder termination method.

安富利:
Conn Socket Strip SKT 3 POS 2mm Solder ST SMD

Newark:
# SAMTEC  SMM-103-02-S-S  Board-To-Board Connector, 2 mm, 3 Contacts, Receptacle, SMM Series, Surface Mount, 1 Rows
