SMS-128-02-G-D

SAMTEC SMS-128-02-G-D Board-To-Board Connector, 1.27mm, 56Contacts, Receptacle, SMS Series, Through Hole, 2Rows

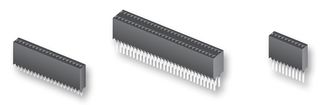

The SMS series from are Tiger Buy through hole micro socket strips. These socket strips mates with Samtec HTMS, TMS, MTMS, DWM, HDWM, FTR, TML, ZML and HMTMS series of connectors.

.

Pitch spacing is 1.27mm 1 to 50 contacts per row with vertical orientation

.

Double row micro socket strip

.

High operating temperature range of -55°C to 125°C for 20µ" gold plated contacts

.

Black liquid crystal polymer insulator material

.

Contact material is phosphor bronze

.

Contact resistance is 10mohm

.

Tiger Buy contact system

.

Complies with UL E111594 and CSA 090871_0_000 standards
