SHF-125-01-L-D-RA

Samtec SHF 系列 1.27mm 有罩印刷电路板管座SHF 系列 1.27mm 节距有罩双排印刷电路板管座，带极化凹口，用于精确配接和镀金触点。 这些 SHF 系列 1.27mm 印刷电路板管座提供直角印刷电路板通孔安装或印刷电路板 SMT 安装，具有多达 50 个触点。 如需配接连接器，请参见 FFSD 和 FFTP 系列 IDC 插座电缆组件### 1.27mm 板到板和线对板 Samtec

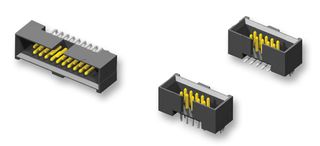

SHF 系列 1.27mm 有罩印刷电路板管座

SHF 系列 1.27mm 节距有罩双排印刷电路板管座，带极化凹口，用于精确配接和镀金触点。 这些 SHF 系列 1.27mm 印刷电路板管座提供直角印刷电路板通孔安装或印刷电路板 SMT 安装，具有多达 50 个触点。 如需配接，请参见 FFSD 和 FFTP 系列 IDC 插座电缆组件

得捷:

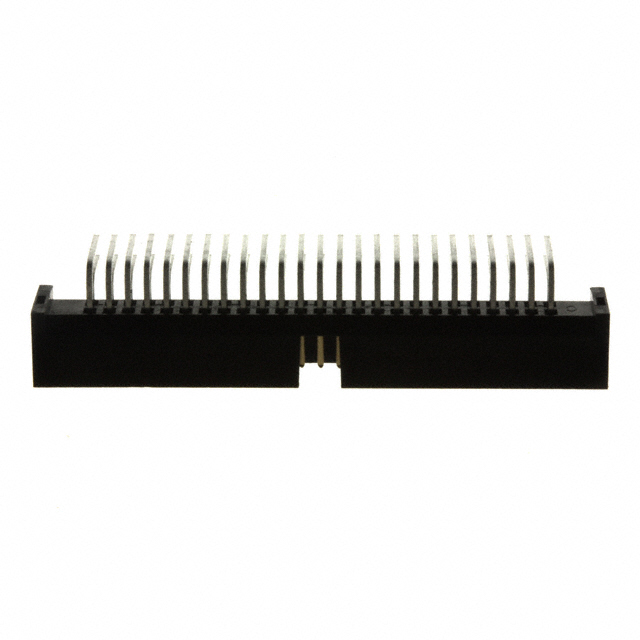

CONN HEADER R/A 50POS 1.27MM

欧时:

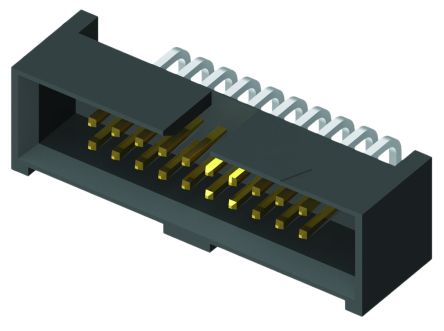

Samtec PCB 针座 SHF 系列 50路 1.27mm节距 2排 直角 SHF-125-01-L-D-RA, 焊接端接, 通孔

艾睿:
Mount this shrouded SHF-125-01-L-D-RA header connector from Samtec on a jumper post on your PCB to support physical configuration options. This HDR connector&s;s 50 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a right angle body orientation. This is a 2-row connector. It has a header type gender. Its pitch is 1.27 mm. This device has a maximum current rating of 1.75 A/contact. It uses the solder termination method. This connector has an operating temperature of -55 to 125 °C. This product is 38.1 mm long, 5.59 mm tall and 7.87 mm deep. SHF-125-01-L-D-RA is housed in black liquid crystal polymer.

安富利:
Conn Shrouded Header HDR 50 POS 1.27mm Solder RA Thru-Hole

Newark:
# SAMTEC  SHF-125-01-L-D-RA  Wire-To-Board Connector, 1.27 mm, 50 Contacts, Header, SHF Series, Through Hole, 2 Rows
