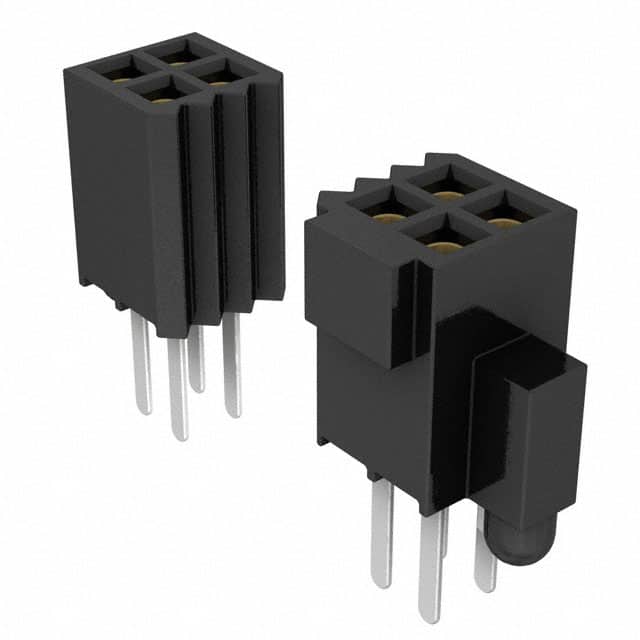

SAMTEC SFM-135-01-S-D-A Wire-To-Board Connector, 1.27mm, 70Contacts, Receptacle, SFM Series, Through Hole, 2Rows
70 位置 插座 0.050"(1.27mm) 通孔 镀金
得捷:
CONN RCPT 70POS 0.05 GOLD PCB
艾睿:
Reduce the possibility of accidentally shorting pins when using a printed circuit board with this socket strip SFM-135-01-S-D-A header connector from Samtec. This SKT connector&s;s 70 contacts that are made out of beryllium copper and plated with gold over nickel. It has a maximum voltage rating of 250 VAC. It has a straight body orientation. Its pitch is 1.27 mm. This is a 2-row connector. It has a socket type gender. This device has a maximum current rating of 3.2 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. It uses the solder termination method. This connector has an operating temperature of -55 to 125 °C. This product is 47.62 mm long, 4.57 mm tall and 3.68 mm deep. SFM-135-01-S-D-A is housed in black liquid crystal polymer.
安富利:
Conn Socket Strip SKT 70 POS 1.27mm Solder ST SMD Tube
Newark:
# SAMTEC SFM-135-01-S-D-A Wire-To-Board Connector, 1.27 mm, 70 Contacts, Receptacle, SFM Series, Through Hole, 2 Rows
触点数 70
极性 Female
触点电镀 Gold
排数 2
拔插次数 10000
额定电流Max 3.2A/触头
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压Max 250 VAC
接触电阻Max 15 mΩ
安装方式 Through Hole
高度 4.57 mm
外壳颜色 Black
触点材质 Beryllium Copper
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tube
制造应用 -
RoHS标准 RoHS Compliant
含铅标准 Lead free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
