SDL-128-G-19

SAMTEC SDL-128G-19 Board-To-Board Connector, 2.54mm, 56Contacts, Receptacle, SDL Series, Through Hole, 2Rows

The SDL series from are low profile double row screw machine socket strips. These through hole socket strips mates with Samtec TS, TD, HTS, BBS, BBD, BBL, BDL and BHS series of connectors.

.

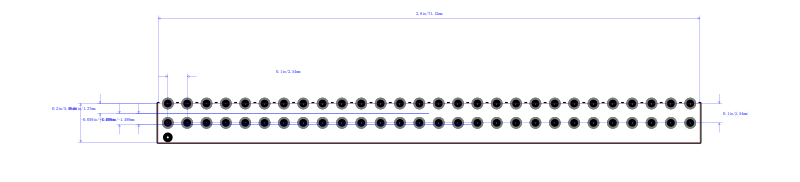

Pitch spacing is 2.54mm 1 to 36 contacts per row with vertical orientation

.

Micro socket hollow leg low insertion force lead style

.

High operating temperature range of -55°C to 125°C for 30µ" gold plated contacts

.

Black glass filled polyester insulator material

.

Choice of four precision screw machined lead styles

.

Beryllium copper BeCu contact in machined brass shell

.

Contact resistance is 10mohm

.

Complies with UL E111594 standard
