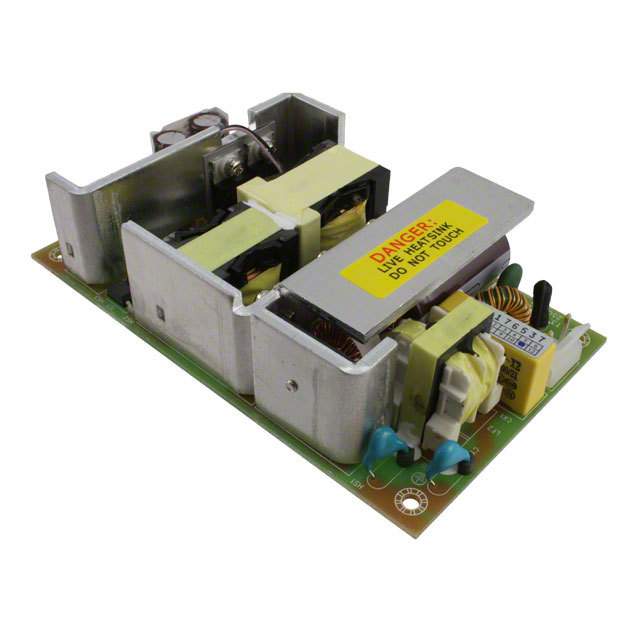

TDK LAMBDA SCS120PW32 AC-DC Open Frame Power Supply, Fixed, 1 Output, 90V, 264V, 120W, 32V
SCS120PW Series 120W, 3 x 5" Single Output Power Supplies
**Features:**
* Low Profi le
* Convection cooled
* Wide Range AC Input with PFC
* Global Safety Agency Compliance
* Industry standard footprint
得捷:
AC/DC CONVERTER 32V 120W
艾睿:
With this SCS120PW32 AC to DC power supply from TDK-Lambda your electronic device will be able to operate by using direct current instead of alternating current. It has a voltage of 32 V and maximum output power of 120 W. This part&s;s single output can handle a current up to 3.75 A.
Allied Electronics:
Power Supply; 120W120W90264VACACDC, 115230VAC, Output 32V 3.75A, 120W
Verical:
AC/DC Power Supply Single-OUT 32V 3.75A 120W 8-Pin
额定功率 120 W
输出接口数 1
输出电压 32 V
输出电流 3.75 A
输出功率 120 W
隔离电压 3 kV
输入电压AC Max 264 v
输入电压AC Min 90 v
输出电流Max 3.75 A
输入电流Min 2.5 A
输出功率Max 120 W
工作温度Max 40 ℃
工作温度Min 0 ℃
输入电压AC 90V ~ 264V
输入电压 90VAC ~ 264VAC
安装方式 Chassis
引脚数 8
长度 3 in
宽度 5 in
高度 30 mm
工作温度 0℃ ~ 60℃
产品生命周期 Active
包装方式 Bulk
制造应用 ITE（商业）
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
