SQT-135-01-L-D-RA

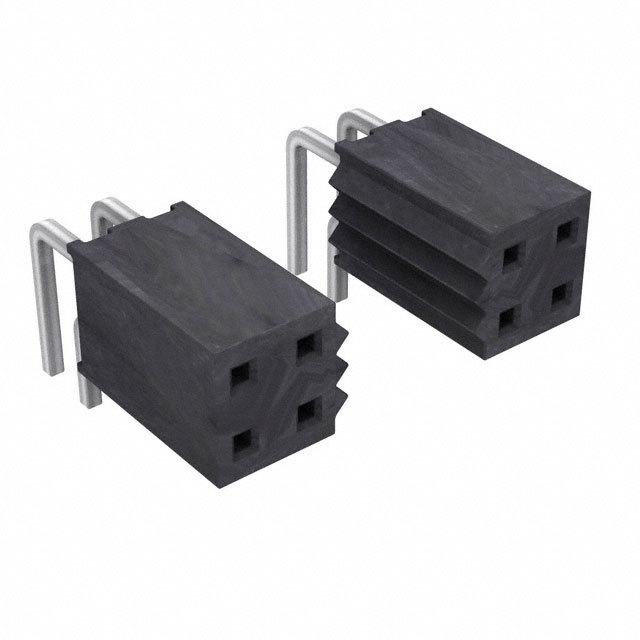

SAMTEC SQT-135-01-L-D-RA Board-To-Board Connector, 2mm, 70Contacts, Receptacle, SQT Series, Through Hole, 2Rows

70 Position Receptacle Connector 0.079" 2.00mm Through Hole, Right Angle Gold

得捷:
CONN RCPT 70P 0.079 GOLD PCB R/A

艾睿:
Easily mount this socket strip SQT-135-01-L-D-RA header connector from Samtec onto your PCB project to support a variety of physical configuration options. This SKT connector&s;s 70 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a maximum voltage rating of 450 VAC. Its pitch is 2 mm. This is a 2-row connector. It has a socket type gender. It has a right angle body orientation. This device has a maximum current rating of 5.1 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. It uses the solder termination method. This product is 70.3 mm long, 4 mm tall and 9.62 mm deep. SQT-135-01-L-D-RA is housed in black liquid crystal polymer. This connector has an operating temperature of -55 to 125 °C.

Newark:
# SAMTEC  SQT-135-01-L-D-RA  Board-To-Board Connector, 2 mm, 70 Contacts, Receptacle, SQT Series, Through Hole, 2 Rows
