SENSORSHIELD-EVK-001

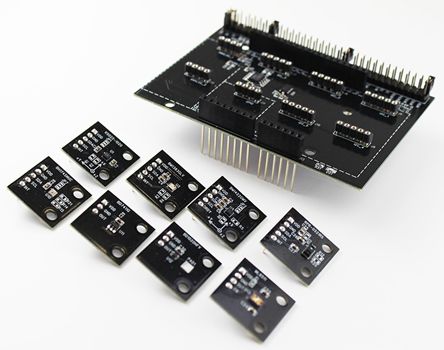

ROHM 传感器板评估套件，用于 Arduino与 ROHM semiconductor Arduino Uno 和 mbed 兼容的传感器板评估套件。该传感器板是理想的培训或开发工具，可轻松评估八种高性能传感器。该评估套件包括主传感器板印刷电路板和八个插入式传感器印刷电路板模块： • 加速器模块，带 ROHM KX022-1020 • 大气压力模块，带 ROHM BM1383GLV • 地磁传感器模块，带 ROHM BM1422GMV • 光和接近传感器模块，带 ROHM RPR-0521RS • RGBC 颜色传感器模块 ROHM BH1745NUC • 霍尔效应传感器模块，带 ROHM BD7411G • 温度传感器模块，带 ROHM BD1020HFV • UV 传感器模块，带 ROHM ML8511A 还提供人体脉搏评估模块，且可与此套件配合使用，请参见 125-0452### Sensor Evaluation, ROHM

The from ROHM is an Arduino-compatible sensor evaluation Kit. The sensor evaluation kit expansion board equipped with 7 sensors accelerometer, barometric pressure, magnetic field designed for use with existing open-source prototyping platforms such as Arduino and mbed. The sensor shield enables easy evaluation of the 8 onboard high-performance sensors, making it ideal for verifying sensor operation, initial set development and as a learning/training tool. Simply connect the sensor shield to an existing open-source MCU-based platform such as Arduino Uno and incorporate software to measure acceleration, temperature and other physical quantities and conditions. The kit makes it easy to immediately verify sensor operation and facilitates the design of sensor devices, significantly lightening development load while promoting the expansion of the IoT market.

.

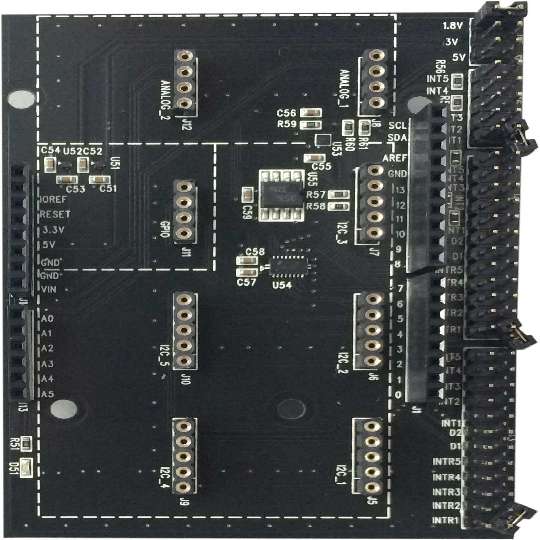

88mm x 63mm board size

.

I2C/ analogue/digital interface

.

Set the power supply voltage of 5V, 3V and 1.8V

.

I2C pull-up register
