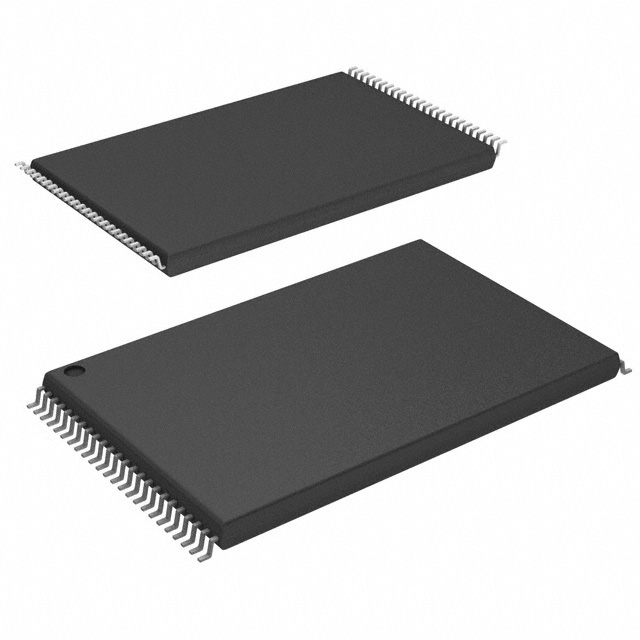

S29JL032J60TFI420

NOR Flash Serial 3.3V 32Mbit 4M/2M x 8Bit/16Bit 60ns 48Pin TSOP Tray

FLASH - NOR 存储器 IC 32Mb（4M x 8，2M x 16） 并联 48-TSOP

立创商城:
S29JL032J60TFI420

得捷:
IC FLASH 32MBIT PARALLEL 48TSOP

艾睿:
NOR Flash Parallel 3.3V 32M-bit 4M x 8/2M x 16 60ns 48-Pin TSOP Tray

安富利:
The S29JL032J is a 32 Mbit, 3.0 volt-only flash memory device, organized as 2,097,152 words of 16 bits each or 4,194,304 bytes of 8 bits each. Word mode data appears on DQ15–DQ0; byte mode data appears on DQ7–DQ0. The device is designed to be programmed in-system with the standard 3.0 volt VCC supply, and can also be programmed in standard EPROM programmers. The device is available with an access time of 60, or 70 ns and is offered in a 48-ball FBGA or a 48-pin TSOP package. Standard control pins—chip enable CE#, write enable WE#, and output enable OE#—control normal read and write operations, and avoid bus contention issues. The device requires only a single 3.0 volt power supply for both read and write functions. Internally generated and regulated voltages are provided for the program and erase operations

Verical:
NOR Flash Parallel 3.3V 32M-bit 4M x 8/2M x 16 60ns 48-Pin TSOP Tray
