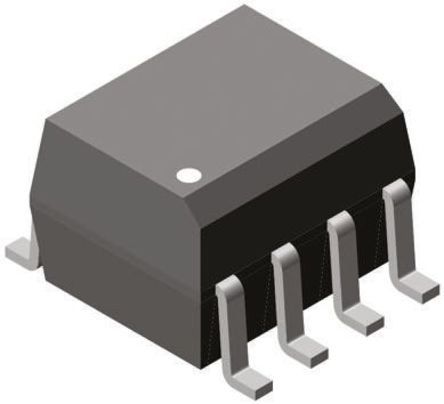

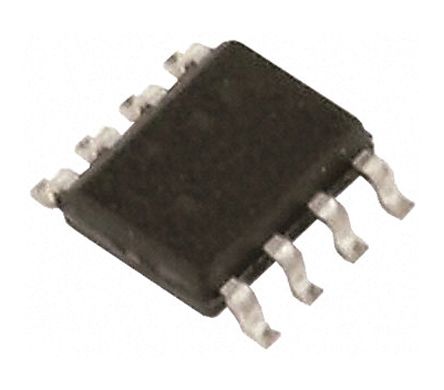

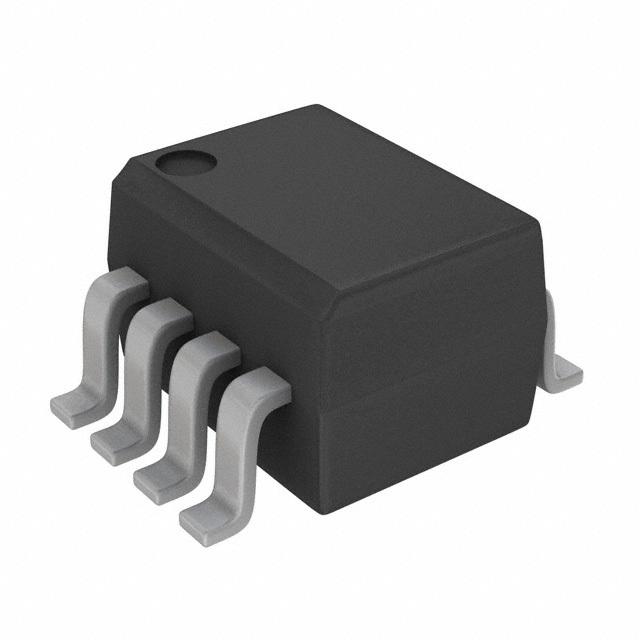

VISHAY SFH6316T 光电耦合器, 晶体管输出, 1通道, SOIC, 8 引脚, 25 mA, 4 kV, 19 %
The is a 1-channel 8-pin high speed Transistor Output Optocoupler consists of a GaAlAs infrared emitting diode, optically coupled with an integrated photodetector and a high speed transistor. The photodetector is junction isolated from the transistor to reduce miller capacitance effects. The open collector output function allows circuit designers to adjust the load conditions when interfacing with different logic systems such as TTL and CMOS. It is suitable for line receivers, logic ground isolation, analogue signal ground isolation and replace pulse transformers.
输出电压 25.0 V
输出电流 8 mA
通道数 1
针脚数 8
正向电压 1.6 V
输入电流 25.0 mA
耗散功率 100 mW
数据速率 1.00 Mbps
隔离电压 4 kV
正向电流 25 mA
输出电压Max 25 V
输入电流Min 25 mA
正向电压Max 1.8 V
正向电流Max 25 mA
工作温度Max 70 ℃
工作温度Min 0 ℃
耗散功率Max 100 mW
安装方式 Surface Mount
引脚数 8
封装 SOIC-8
长度 5 mm
宽度 4 mm
高度 1.55 mm
封装 SOIC-8
工作温度 -55℃ ~ 100℃
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 Signal Processing, Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SFH6316T Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
HCPL-0701-500E 博通 | 功能相似 | SFH6316T和HCPL-0701-500E的区别 |
HCPL-0731-500E 博通 | 功能相似 | SFH6316T和HCPL-0731-500E的区别 |
6N136 亿光 | 功能相似 | SFH6316T和6N136的区别 |
