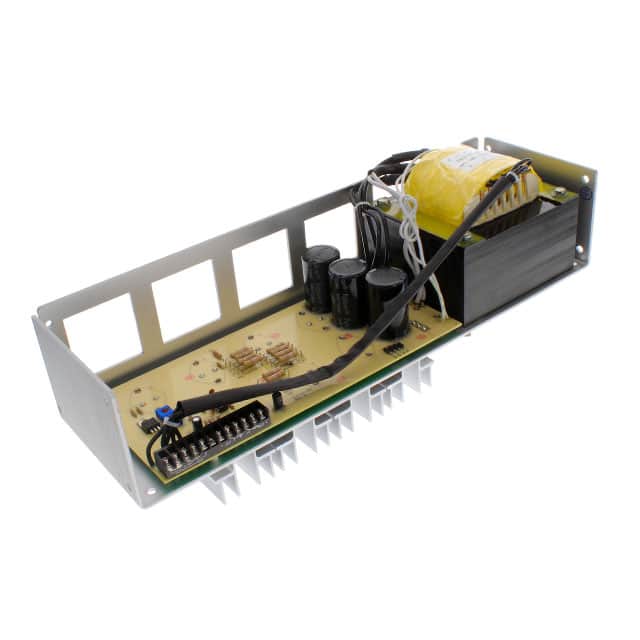

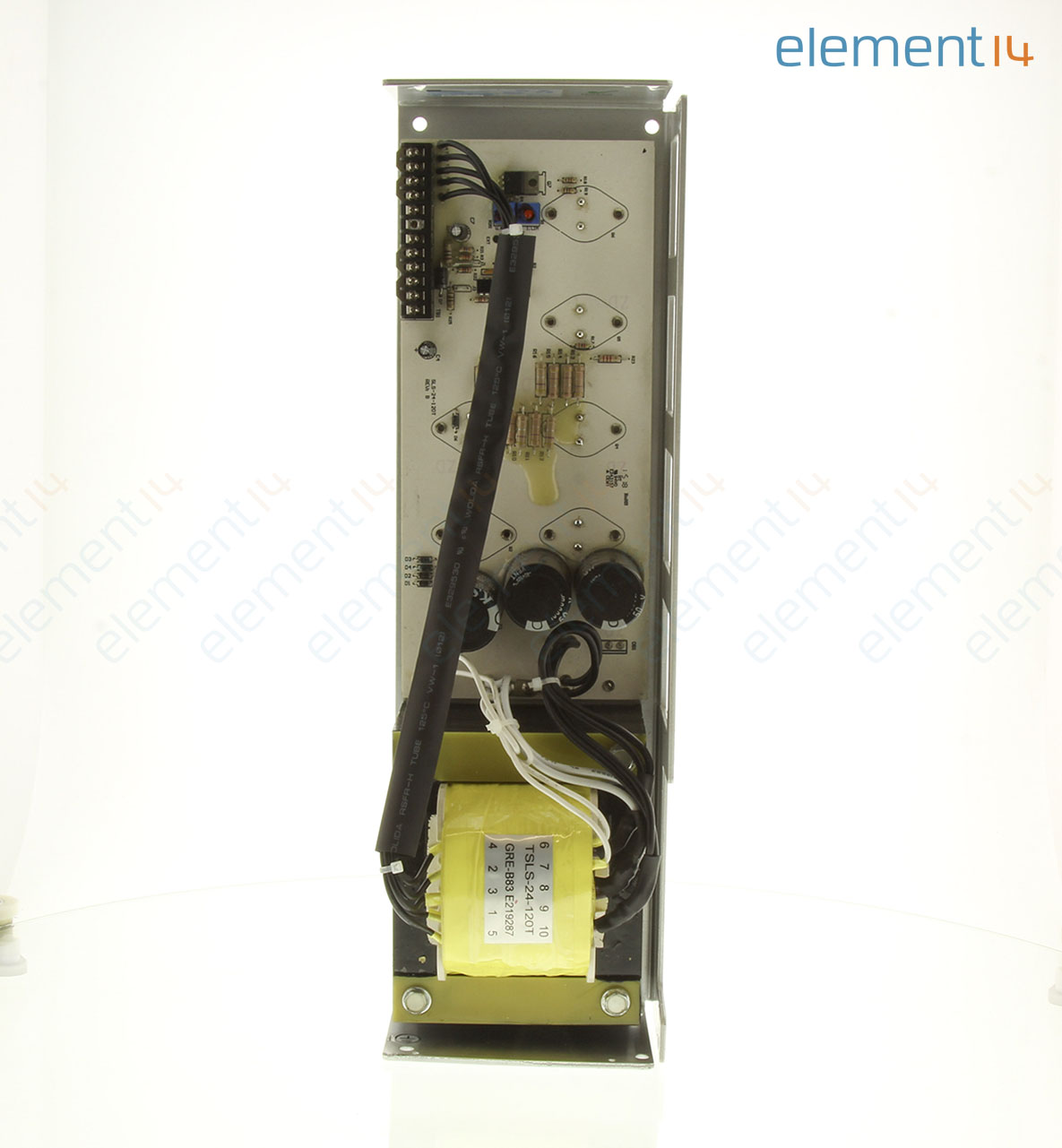

SLS-24-120T

Linear Power Supply, Fixed, 1Outputs, 100V, 240V, 288W, 24V

**Silverline Series

Features and Benefits:

* **Easy-to-install screw terminal connections

* Cover options

* Industry standard footprint

* Automatic resetting overload protection

* Short circuit protected

* Fast transient response

* Tight Regulation: 0.10% Line and Load Combined

* No Soldering Required

* Terminal Block Connection

* Built-In OVP on 5 V Models Optional on 12 V, 15 V, 24 V

* Foldback Current Limiting

* Form, Fit, Function Replacements for Most Major Manufacturers

* UL Recognized, CSA Approval

* Input Voltage: 100/120/220/230/240 AC Selectable

* Input Frequency: 47-63 Hz

* Remote Sensing

* Operating Temperature: 0° to +50°C

* EMI/RFI Meets FCC Class B and VDE 0871 for Class B

* Shock Vibration Per Mil-STD-810C
