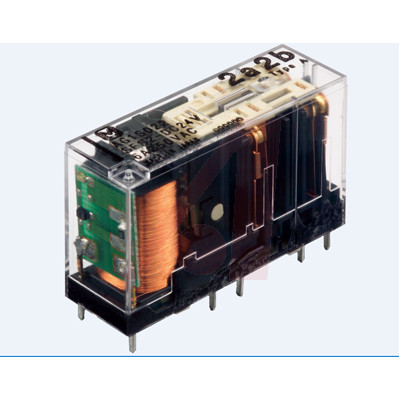

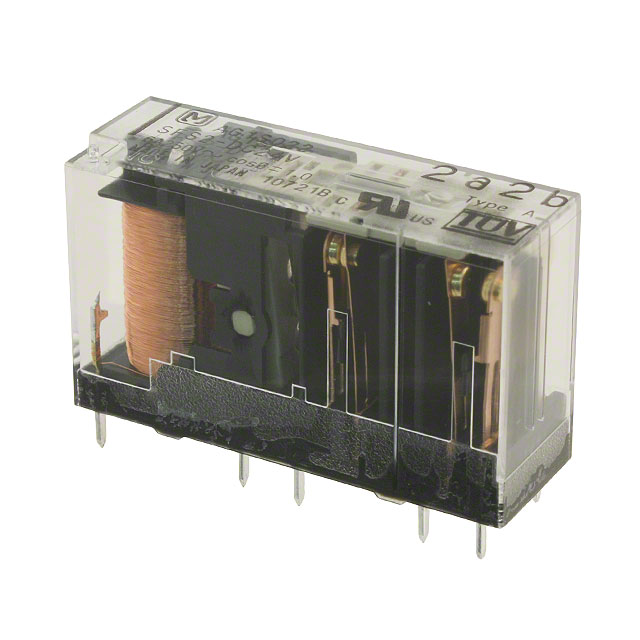

PANASONIC ELECTRIC WORKS SFS2-DC12V 安全继电器, SF Series, DPST-常开, DPST-常闭, 12 VDC, 6 A, 通孔安装, 焊接
Electromechanical Relay 12VDC 400Ohm 6A DPST-NO/DPST-NC 40mm 13mm 24mm THT Safety Relay
得捷:
RELAY SAFETY 4PST 6A 12V
立创商城:
SFS2-DC12V
贸泽:
通用继电器 SF Relay Slim t
e络盟:
安全继电器, 12 VDC, DPST-常开, DPST-常闭, SF Series, 通孔安装, 6 A, 焊接
艾睿:
Electromechanical Relay 12VDC 400Ohm 6A DPST-NO/DPST-NC 40mm 13mm 24mm THT Safety Relay
Allied Electronics:
SAFETY Relay 12VDC 6AMP 4PST
Chip1Stop:
Electromechanical Relay DPST-NO/DPST-NC 6A 12VDC 400Ohm Through Hole
Verical:
Electromechanical Relay 12VDC 400Ohm 6A DPST-NO/DPST-NC 40mm 13mm 24mm THT Safety Relay
Newark:
# PANASONIC ELECTRIC WORKS SFS2-DC12V Safety Relay, DPST-NO, DPST-NC, 12 VDC, 6 A, SF Series, Through Hole, Solder
MASTER:
Relays 12VDC 400Ohm 6A DPST-NO/DPST-NC 40mm 13mm 24mm THT Safety Relay
Electro Sonic:
Relays 12VDC 400Ohm 6A DPST-NO/DPST-NC 40mm 13mm 24mm THT Safety Relay
Win Source:
RELAY SAFETY 4PST 6A 12V /
额定电压DC 30 V
额定电压AC 250 V
触点类型 DPST-NO
触点额定电流 6 A
线圈电压 12 VDC
线圈电流 30 mA
线圈电阻 400 Ω
额定电流Max 6 A
线圈电压DC 12 V
线圈功率 360 mW
额定功率Max 180W, 1.5KVA
工作温度Max 85 ℃
工作温度Min -40 ℃
安装方式 Through Hole
引脚数 10
封装 插件
长度 40 mm
宽度 13 mm
高度 24 mm
封装 插件
触点材质 Silver Tin Oxide
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536410020
