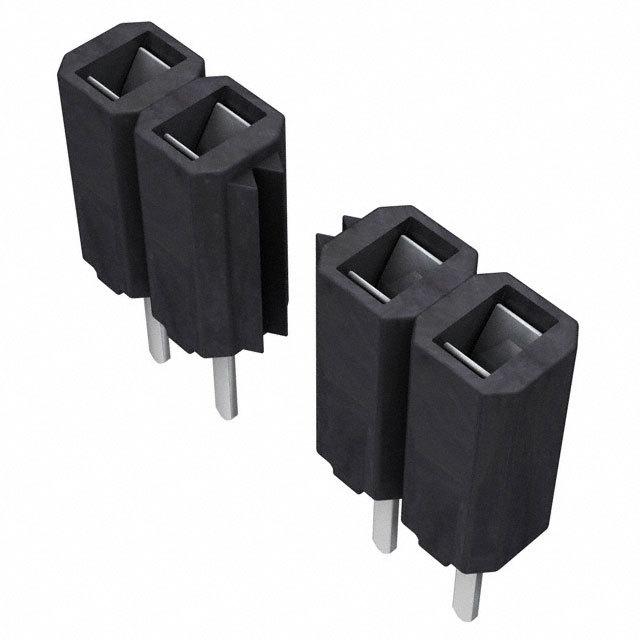

SSA-130-S-T

Conn Socket Strip SKT 30POS 2.54mm Solder ST Thru-Hole

30 Position Receptacle, Breakaway Connector 0.100" 2.54mm Through Hole Tin

欧时:
.100"Skt Strip 30p

得捷:
CONN RCPT 30POS 0.1 TIN PCB

艾睿:
Reduce safety concerns with this socket strip SSA-130-S-T header connector from Samtec which will reduce the possibility of accidentally shorting pins when a printed circuit board is being used. This SKT connector&s;s 30 contacts that are made out of phosphor bronze and plated with tin over nickel. Its pitch is 2.54 mm. It has a maximum voltage rating of 1000 VAC. It has a socket type gender. It has a straight body orientation. This is a 1-row connector. This device has a maximum current rating of 1 A/contact. SSA-130-S-T is housed in black polyethylene terephthalate. It uses the solder termination method. This connector has an operating temperature of -55 to 105 °C. This product is 76.2 mm long, 5.84 mm tall and 2.54 mm deep.

安富利:
Conn Socket Strip SKT 30 POS 2.54mm Solder ST Thru-Hole

Verical:
Conn Socket Strip SKT 30 POS 2.54mm Solder ST Thru-Hole
