SDB-15PFFS-SL8001

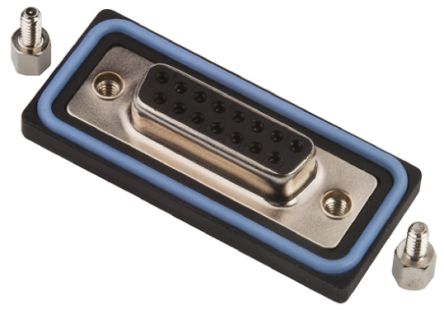

SDB-15PFFS-SL8001图片1
SDB-15PFFS-SL8001图片2
SDB-15PFFS-SL8001图片3
SDB-15PFFS-SL8001图片4
SDB-15PFFS-SL8001图片5
SDB-15PFFS-SL8001概述

IP67 Sub-D Panel connectors, Wire solderIP67 waterproof Sub-D connectors, with solder bucket terminations, for panel mount Connectors are supplied with screwlocks, 5 and 6 mm lengths to accomodate different panel thickness### 防水 IP67 "D"适合于军事应用、工业应用或者商业应用和计算机接口连接等等

IP67 Sub-D Panel connectors, Wire solder

IP67 waterproof Sub-D connectors, with solder bucket terminations, for panel mount

Connectors are supplied with screwlocks, 5 and 6 mm lengths to accomodate different panel thickness


欧时:
MH Connectors 防水焊接 D-Sub 连接器 面板安装 插座 DB15 15 路 SDB-15PFFS-SL8001, 500 V 交流, 5A


e络盟:
D-Sub 连接器, DB15, 15 触点, 插座, 焊接杯, DA, SDB Series


艾睿:
Conn D-Subminiature F 15 POS Screw ST Panel Mount 15 Terminal 1 Port


Verical:
Conn D-Subminiature F 15 POS 1.37mm Screw ST Panel Mount 15 Terminal 1 Port


Newark:
# AMPHENOL LTW  SDB-15PFFS-SL8001  Standard D Sub Connector, 15 Contacts, Receptacle, DA, LTWSDB Series, Steel Body, Solder


CDI:
D-SUB Connector, Receptacle, Standard, 15 pins, IP68 - Mated, Square, Female Connector, Female pin, Screw Thread, Front Fastened, 5A, Solder Type; Straight Without Board Lock


SDB-15PFFS-SL8001中文资料参数规格
技术参数

触点数 15

极性 Female

触点电镀 Gold

额定电流 5 A

排数 2

工作温度Max 105 ℃

工作温度Min -40 ℃

额定电压 500 VAC

封装参数

安装方式 Solder

外形尺寸

长度 47.7 mm

宽度 4.6 mm

高度 21 mm

物理参数

触点材质 Copper Alloy

符合标准

RoHS标准 RoHS Compliant

数据手册

在线购买SDB-15PFFS-SL8001
型号: SDB-15PFFS-SL8001
制造商: Amphenol 安费诺
描述:IP67 Sub-D Panel connectors, Wire solder IP67 waterproof Sub-D connectors, with solder bucket terminations, for panel mount Connectors are supplied with screwlocks, 5 and 6 mm lengths to accomodate different panel thickness ### 防水 IP67 "D" 适合于军事应用、工业应用或者商业应用和计算机接口连接等等
