INFINEON SPD06N80C3ATMA1 功率场效应管, MOSFET, N沟道, 6 A, 800 V, 0.78 ohm, 10 V, 3 V

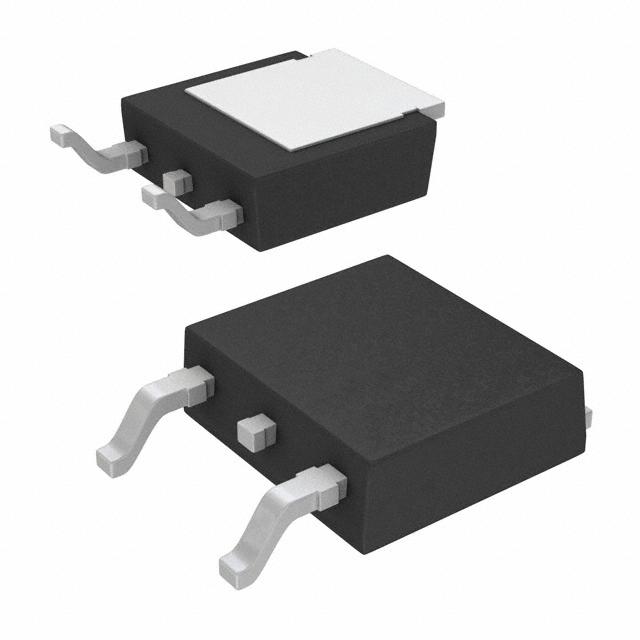

表面贴装型 N 通道 800 V 6A(Ta) 83W(Tc) PG-TO252-3
得捷:
MOSFET N-CH 800V 6A TO252-3
欧时:
Infineon MOSFET SPD06N80C3ATMA1
立创商城:
N沟道 800V 6A
贸泽:
MOSFET LOW POWER_LEGACY
e络盟:
INFINEON SPD06N80C3ATMA1 功率场效应管, MOSFET, N沟道, 6 A, 800 V, 0.78 ohm, 10 V, 3 V
艾睿:
Do you require the advantages of traditional transistors coupled with the switching benefits of power MOSFETs? Infineon Technologies&s; SPD06N80C3ATMA1 power MOSFET can provide a solution. Its maximum power dissipation is 83000 mW. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This device is made with coolmos technology. This MOSFET transistor has a minimum operating temperature of -55 °C and a maximum of 150 °C. This N channel MOSFET transistor operates in enhancement mode.
安富利:
Trans MOSFET N-CH 800MinV 6A 3-Pin TO-252 T/R
Verical:
Trans MOSFET N-CH 800V 6A 3-Pin2+Tab DPAK T/R
Newark:
# INFINEON SPD06N80C3ATMA1 Power MOSFET, N Channel, 6 A, 800 V, 0.78 ohm, 10 V, 3 V
Win Source:
MOSFET N-CH 800V 6A 3TO252
针脚数 3
漏源极电阻 0.78 Ω
极性 N-Channel
耗散功率 83 W
阈值电压 3 V
输入电容 785 pF
漏源极电压Vds 800 V
连续漏极电流Ids 6A
上升时间 15 ns
输入电容Ciss 785pF @100VVds
额定功率Max 83 W
下降时间 8 ns
工作温度Max 150 ℃
工作温度Min -55 ℃
耗散功率Max 83W Tc
安装方式 Surface Mount
引脚数 3
封装 TO-252-3
长度 6.5 mm
宽度 6.22 mm
高度 2.3 mm
封装 TO-252-3
工作温度 -55℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SPD06N80C3ATMA1 Infineon 英飞凌 | 当前型号 | 当前型号 |
SPD06N80C3BTMA1 英飞凌 | 类似代替 | SPD06N80C3ATMA1和SPD06N80C3BTMA1的区别 |
