SEH-001T-P0.6

JST JAPAN SOLDERLESS TERMINALS  SEH-001T-P0.6  触芯, EH系列, 母, 压接, 22 AWG, 镀锡触芯, JST EH系列外壳连接器

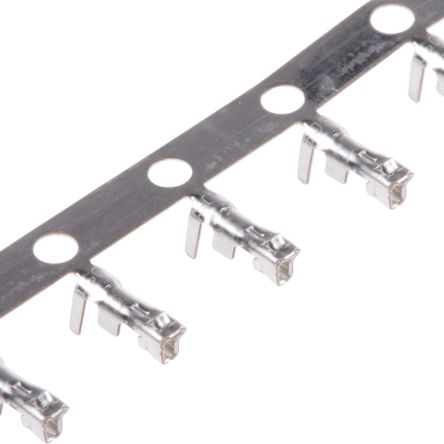

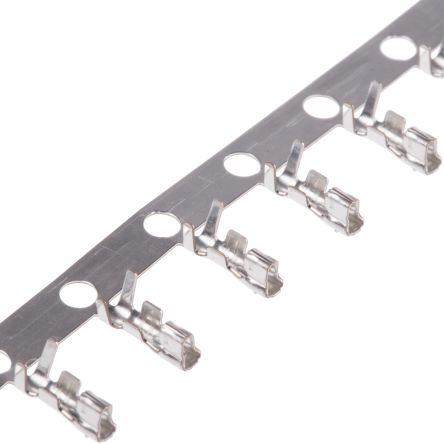

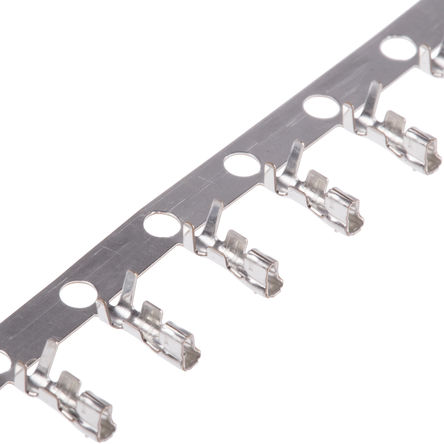

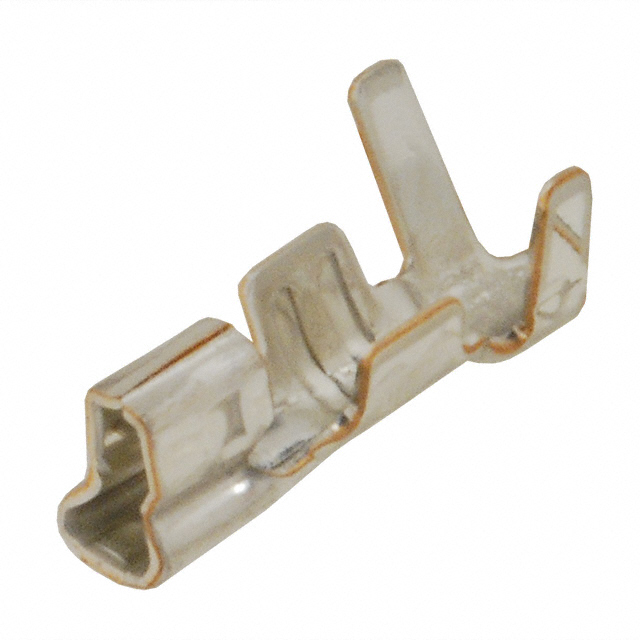

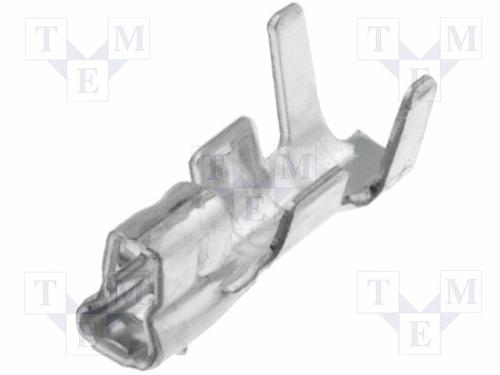

EH 系列压接触点

一系列压接插座触点，适用于 EH 系列压接插座外壳。 这些压接插座由磷青铜制成，镀锡，可接受 30 到 22 AWG 的电线尺寸范围

有关压接工具，请参见库存号 448-2355

有关插入工具，请参见库存号 325-3500

### 注

部件号中的 BEH 前缀 - 散装产品。

部件号中的 SEH 前缀 - 卷装。

得捷:
CONN SOCKET 22-30AWG CRIMP TIN

立创商城:
SEH-001T-P0.6 非整盘发货是100一截

欧时:
JST EH 系列 母 压接端子触点 SEH-001T-P0.6, 镀锡 磷铜触芯, 20 Ω最大接触电阻, 30AWG 至 22AWG

e络盟:
触芯, EH系列, 母, 压接, 30 AWG, 镀锡触芯, EH连接器

艾睿:
This SEH-001T-P0.6 connector contact from JST Corporation comes in a variety of metals, lengths, and surface area ratings so you&s;re always getting the one you need. It has a socket type gender. It has a straight body orientation. This device has a maximum current rating of 3 A. This has a Connector Headers and PCB Receptacles connector. It uses the crimp termination method. This product is 5.7 mm long. This connector contact has a minimum operating temperature of -25 °C and a maximum of 85 °C. Its wire is 22-30 AWG.

Chip1Stop:
Contact SKT Crimp ST Cable Mount Reel

TME:
Contact; female; 0.05÷0.33mm2; 30÷22AWG; EH; tinned; crimped; 3A

Verical:
Contact SKT Crimp ST Cable Mount 22-30AWG T/R

Newark:
# JST JAPAN SOLDERLESS TERMINALS  SEH-001T-P0.6  Contact, EH Series, Socket, Crimp, 30 AWG, Tin Plated Contacts, EH Series Connectors

CDI:
Contact, 30-22AWG, TinPlated, 2.5mmPitch

Win Source:
CONN TERM CRIMP EH 22-30AWG
