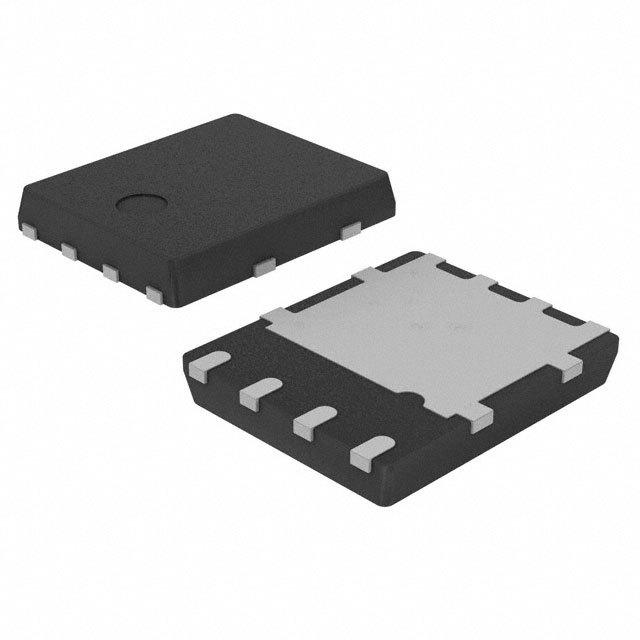

N 沟道 30 V 0.0011 Ω 46 nC 113 W STripFET VII 功率 MosFet - PowerFLAT5 x 6
N-Channel 30V 220A Tc 113W Tc Surface Mount PowerFlat™ 5x6
得捷:
MOSFET N-CH 30V 220A POWERFLAT
艾睿:
If you need to either amplify or switch between signals in your design, then STMicroelectronics&s; STL220N3LLH7 power MOSFET is for you. Its maximum power dissipation is 113000 mW. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This N channel MOSFET transistor operates in enhancement mode. This device utilizes stripfet technology. This MOSFET transistor has an operating temperature range of -55 °C to 150 °C.
安富利:
Trans MOSFET N-CH 30V 220A 8-Pin PowerFLAT T/R
富昌:
N 沟道 30 V 0.0011 Ω 46 nC 113 W STripFET VII 功率 MosFet - PowerFLAT5 x 6
Verical:
Trans MOSFET N-CH 30V 220A 8-Pin Power Flat EP T/R
儒卓力:
**N-CH 30V 220A 1,1mOhm PwFLAT5x6 **
极性 N-CH
耗散功率 113 W
漏源极电压Vds 30 V
连续漏极电流Ids 220A
上升时间 115 ns
输入电容Ciss 8650pF @25VVds
额定功率Max 113 W
下降时间 51 ns
工作温度Max 150 ℃
工作温度Min -55 ℃
耗散功率Max 113W Tc
安装方式 Surface Mount
引脚数 8
封装 PowerFLAT-8
封装 PowerFLAT-8
工作温度 -55℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准
含铅标准 Lead Free
ECCN代码 EAR99
香港进出口证 NLR
