STM32F101RDT6

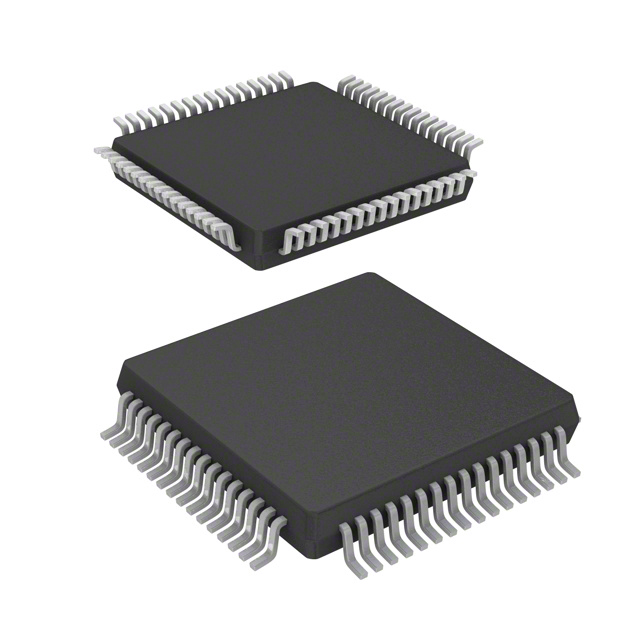

STMICROELECTRONICS  STM32F101RDT6  微控制器, 32位, ARM 皮质-M3, 36 MHz, 384 KB, 48 KB, 64 引脚, LQFP

The is a high density access line STM32 F1 series 32-bit Microcontroller incorporates the high-performance ARM Cortex-M3 RISC core operating at a 36MHz frequency, high speed embedded memories Flash memory up to 384kB and SRAM up to 48KB and an extensive range of enhanced peripherals and I/Os connected to two APB buses. This device offer one 12-bit ADCs, four general purpose 16-bit timers, as well as standard communication interfaces - up to two I²Cs, three SPIs and five USARTs.

.

36MHz Maximum frequency, 1.25 DMIPS/MHz Dhrystone 2.1 performance

.

Single cycle multiplication and hardware division

.

Flexible static memory controller with 4 chip select

.

LCD parallel interface, 8080/6800 modes

.

Clock, reset and supply management

.

POR, PDR and programmable voltage detector PVD

.

4 to 16MHz Crystal oscillator

.

Internal 8MHz factory trimmed RC

.

Internal 40kHz RC

.

PLL for CPU clock

.

32kHz Oscillator for RTC with calibration

.

Sleep, stop and standby modes

.

VBAT supply for RTC and backup registers

.

Serial wire debug SWD and JTAG interfaces

.

12-channel DMA Controller

.

2 x Watchdog timers Independent and window

.

SysTick Timer

.

96-bit Unique ID
